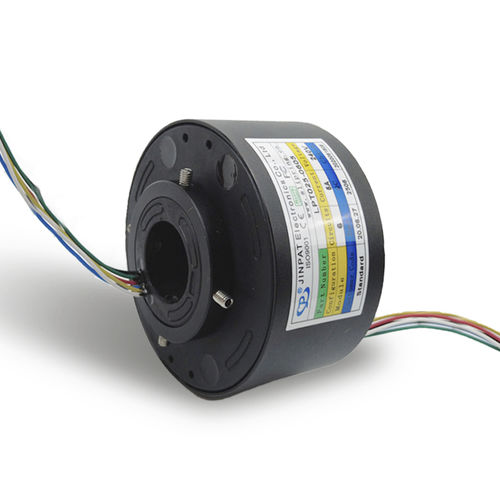

Through-hole slip ring LPT025-0605

for cranesfiber brush

LPT025-0605 hallow shalft slip ring features 6 circuits and 5 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT080 features field serviceable brush blocks. Specification Circuits 1-24 circuits Operating Speed 0-400rpm Working Temperature -20℃~ +60℃ Working Humidity 60%RH or higher Electrical: Voltage Rating 380VAC/DC or higher Current Rating 2A/5A/10A/15A per circuit Dielectric Strength ≥1000V@50Hz between each circuit Insulation Resistance 50MΩ@ 500VDC Electrical Noise 30mΩ Min Contact Material Precious metal Lead Wire Length Standard 300mm (11.811inch) Housing Material Aluminum alloy Torque ≤9.25 g·m (for reference ) Protection Grade IP44 or higher
