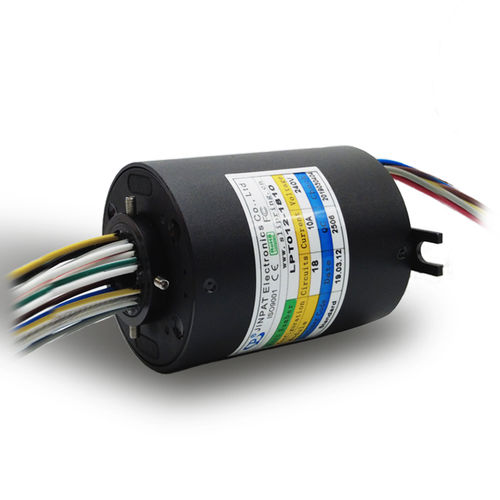

electrical slip ring
LPT012-1805 JINPAT Electronics Co., Ltd.

Add to MyDirectIndustry favorites
electrical slip ring electrical slip ring - LPT012-1805
{{requestButtons}}

Characteristics

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1,885 rad.min-1)

  • Current:

    5 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 18 unit

Description

Part Number: LPT012-1805

18 circuits

Current Range: 18 circuits * 5 A;
Voltage of 380 VAC; Dielectric Strength: ≥1000 VAC@50 Hz;
Insulation: 500 MΩ@500 VDC; Electrical Noise: ≤70 mΩ

Operating Speed:0~300rpm; Wire Size: AWG22# Tin plated Teflon UL;
Wire Length: stator (300 mm), rotor(300 mm); Inner diameter of φ12.7 mm;
Contact: Precious Metal; Housing: Aluminum Alloy;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP 54;
