Continuous wave laser

solid-statemultiple-wavelengthVCSEL

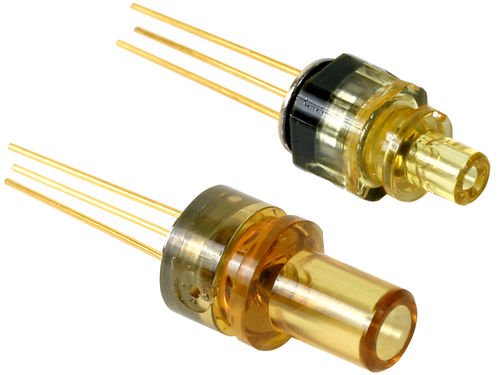

This Lumentum 850 nm 2.5 Gbps LC/SC connectorized TOSA (Transmit Optical Sub- Assembly) is designed for high-speed data communication applications in Datacom transceiver modules. The product utilizes a high performance, high reliability VCSEL integrated in a TO-46 package aligned to a precision plastic barrel. The Lumentum design produces excellent monitor current tracking over temperature. Each unit receives Lumentum’s proprietary burn-in and stabilization process to ensure a low failure rate and long life expectancy while providing continuously consistent performance. Each part is electro-optically tested to ensure optimum performance and yield in the application. The 2.5G TOSA converts an electrical signal into optical power at data rates up to 2.5 Gbps and is engineered for performance over extended operating temperature and power conditions with high reliability. It can be used with 50/125 μm and 62.5/125 μm multimode fibers. Features Data rates up to 2.5 Gbps Optimized for -40 °C to 85 °C Transceiver Applications Optical power monitor with excellent tracking Common cathode or common anode VCSEL TO package aligned to a plastic barrel Custom specification tolerances available Fully burned-in and stabilized Class 3B laser product
