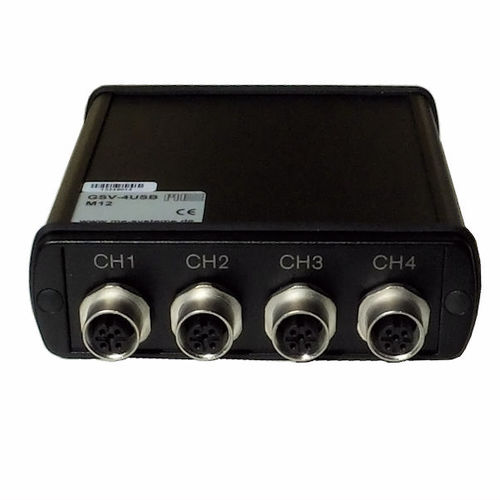

Signal amplifier GSV-4USB Seriesfor strain gauge sensorsfour-channel
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Other characteristics
- for strain gauge sensors, four-channel
- Frequency
900 Hz
Description
4 - channel straingauge amplifier in aluminium housing;
connection: round connector m12;
dimensions: 120mm x 109mm x 35mm;
interface: USB;
input sensitivity: 2 mV/V / 10 mV/V;
limit frequency: 450 Hz;
data frequency: till 900 Hz;
supply voltage: 4,5 V..5,5 V DC;
resolution: 16 Bit;
trigger input;
environmental protection: IP40;
accessories (incl.): USB cable, plug Sub-D 25-pin;
