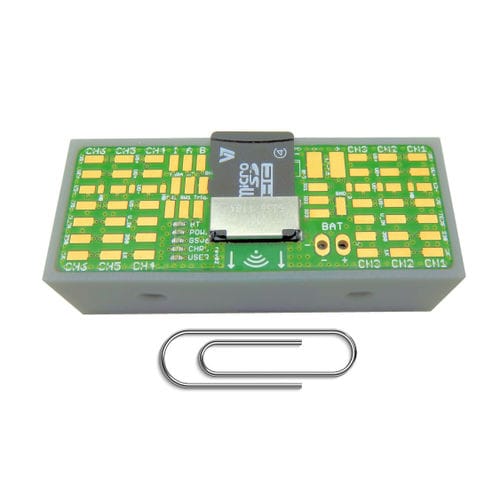

Signal amplifier GSV-6BT
measuringdigitalfor strain gauge sensors

signal amplifier
signal amplifier
Add to favorites
Compare this product


Secondary function
Other characteristics
digital, for strain gauge sensors

Max.: 3,000 Hz

Min.: 10 Hz


6-channel strain gauge measuring amplifier with Bluetooth 4.0; Bluetooth configurable Class 2, (+ 12dBm), up to about 400m range; Bluetooth LE configurable; configurable input for strain gauge full, half, quarter bridge, / 350/1000 ohms; Dimensions 50 mm x 20 mm x 17 mm; 16Bit ADC, Measurement frequency (float format) up to 10 to 500Hz (6-channel) or 10 to 2000Hz (1-channel); Measurement frequency (16-bit format) to 10 Hz to 1 kHz (6-channel) or 10 Hz to 3 kHz (1-channel); digital inputs / outputs; Inputs individually configurable: 0.1 ... 8 mV / V, 1.5V + -1V; Power: 2.8V to 5.5V; integrated charging circuit for Li-Ion and Li-Po battery, 500mA charging current; Weight 29 g;
