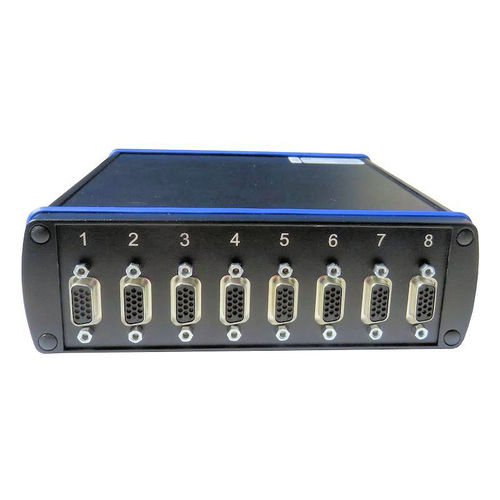

Signal amplifier GSV-8DSanalogfor strain gauge sensors8-channel
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Other characteristics
- analog, for strain gauge sensors, 8-channel
- Voltage
10 V
- Current
Min.: 4 mA
Max.: 20 mA
Description
8 - channel straingauge amplifier in aluminum housing;
connection: SubD15;
dimensions: 172 x 172 x 55 mm / 176 x 221 x 58 mm;
analog output: -10V ... + 10V or 4 ... 20mA (scalable);
input sensitivity: 2 / 3,5 / 7 mV/V;
interface: 1x USB Port;
datafrequency: 48kS/s simultaneous for 8 channels;
configurable filter fourth order: lowpass, bandpass, band-stop, highpass;
resolution: 24 bit;
supply voltage: 12 V ... 28 V DC;
weight: 1.25 kg;
environmental protection: IP64;
