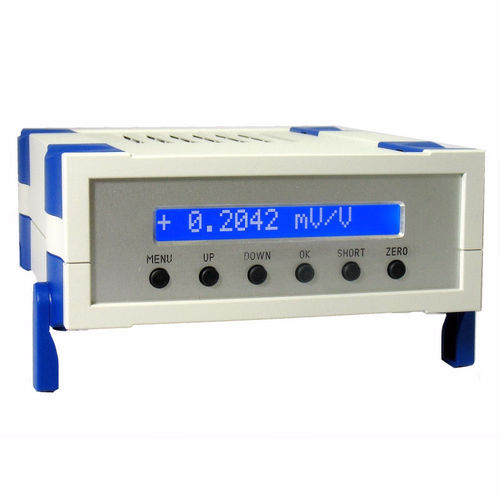

Signal amplifier GSV-2TSD-DIanalogEthernetwith USB port
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Other characteristics
- analog, Ethernet, with USB port, for strain gauge sensors, benchtop, single-channel
- Voltage
5 V
- Frequency
260 Hz
Description
1- channel straingauge amplifier in Desktop-housing;
connection: 15-pole sub-d plug for straingages/sensors;
connection: screw terminal for straingage full- half- quarter bridges;
display: 9mm, 16 digits;
dimensions: 174mm x 65mm x 196mm;
analog output: -5+5V;
input sensitivity: 3,5 mV/V;
interface: RS232, USB port, Ethernet,CANOpen;
limiting frequency: 260Hz;
Wall wart 230V/110V, RS232 cable (accessories kit);
supply voltage: 10V..28V DC;
resolution: 24 Bit;
weight: 922 g;
environmental protection: IP40;
