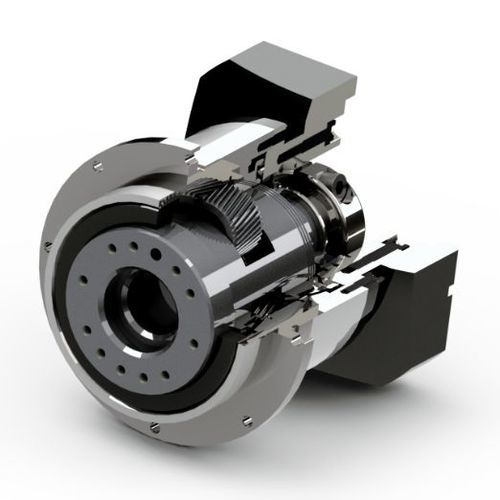

Helical gearbox AD64coaxial200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- helical
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm, 2 - 5 kNm
- Performance
- low-noise, high-precision, low-backlash, high-torque, maintenance-free, for heavy loads, high-power
- Applications
- for machinery, for industrial applications, for marine applications, for mining applications, for servo motors, for food industry machinery, for railway vehicles
- Other characteristics
- compact, mechanical transmission, for robotics, for loaders
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)
Description
AD Series is our planetary gearbox with compact flange output shaft. You save more than a third of the space and benefit from a torsional stiffness that is five times higher than conventional products. Due to its standardized flange interface, it is especially easy to install. The integrated dowel hole provides additional secureness during fitting.
Frame Size - 64mm, 75mm, 100mm, 140mm, 200mm, 255mm, 285mm
Output Torque - 42Nm-4702Nm
Ratio 1 stage - 3,4,5,6,7,8,9,10
Ratio 2 stage - 12,15,16,20,25,28,30,35,40,45,50
Ratio 3 stage - 48,60,75,80,100,120,125,180,200,256,320,512
Backlash 1 stage - P0<2 arc-min P1<3arc-min P2<5 arc-min
Backlash 2 stage - P0<3 arc-min P1<5 arc-min P2<7 arc-min
Backlash 3 stage - P0<5 arc-min P1<7 arc-min P2<9 arc-min
