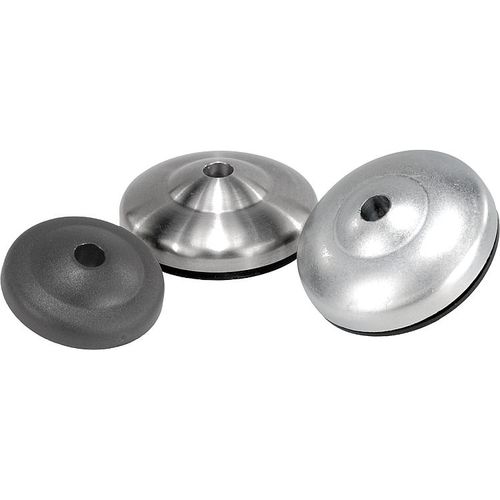

Levelling feet plates ECO-Line die-cast zinc, stainless steel or plastic
Material:
Plate thermoplastic, die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.
Version:
Thermoplastic plate black.
Die-cast zinc plate blue galvanized.
Stainless steel plate bright.
Note for ordering:
If the levelling foot plate and the threaded spindle are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and spindle. (e.g. 27830-10303 and 27832-080801 assembled).
Note:
ECO-Line levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.
For matching threaded spindles see 27832.
Drawing reference:
Form A without anti-slip plate
Form B with anti-slip plate
