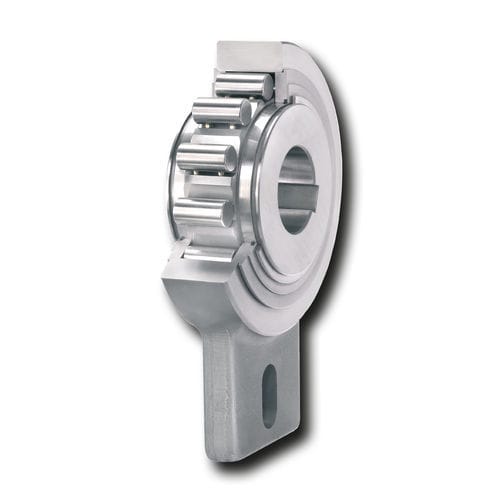

One-way roller clutch / full-face / with internal bearings / indexing
FAV series RINGSPANN

Characteristics

  • Technology:

    roller

  • Construction:

    full-face, with internal bearings

  • Applications:

    indexing

  • Other characteristics:

    low-speed

  • Torque:

    Min.: 220 Nm (162.26 ft.lb)

    Max.: 2500 Nm (1843.91 ft.lb)

  • Diameter:

    Min.: 20 mm

    Max.: 80 mm

  • Rotational speed:

    Min.: 220 rpm (1382.3 rad.min-1)

    Max.: 500 rpm (3141.59 rad.min-1)

Description

The FAV series is a line of complete freewheels manufactured by Ringspann. The freewheel is suitable for use as a backstop in low speed freewheeling operations. It can also serve as an indexing freewheel for a low to medium total number of actuations.

The unit is equipped with a lever arm, and rollers. It is supplied with grease lubrication to achieve a maintenance-free feature. The series comes in different nominal torque from 220 Nm to 2 500 Nm. It also has a bore diameter range of 20mm to 80mm.
