Sprag backstop FRHD series
full-facebearinglow-speed

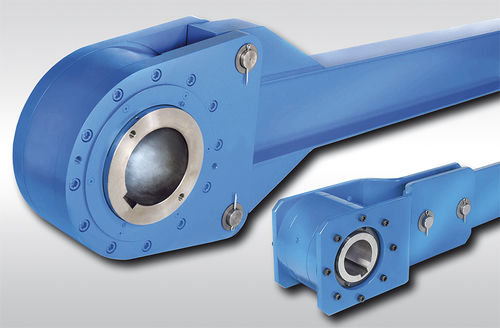

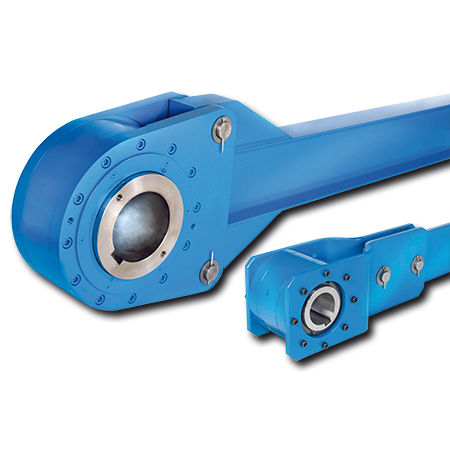

Sprag backstop - FRHD series - RINGSPANN - full-face / bearing / low-speed
Sprag backstop - FRHD series - RINGSPANN - full-face / bearing / low-speed
Sprag backstop - FRHD series - RINGSPANN - full-face / bearing / low-speed - image - 2
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Technology
sprag
Construction
full-face, bearing
Other characteristics
low-speed
Torque

Max.: 900,000 ft.lb

Min.: 3,750 ft.lb

Diameter

Max.: 21 in

Min.: 3.44 in

Rotational speed

Max.: 620 rad.min-1
(98.6761 rpm)

Min.: 100 rad.min-1
(15.9155 rpm)

Description

Low Speed Backstops FRHD with lever arm are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation.

The Low Speed Backstops FRHD are arranged on through shafts or shaft ends.

Nominal torques up to 900 000 lb-ft.

Bores up to 21 inch.


Application as
  • Backstop
for installations with low speeds. The freewheels are designed for the use in inclined conveyor-belts, elevators or pumps. Taconite seals protect the freewheels from contamination with dust or dirt.
