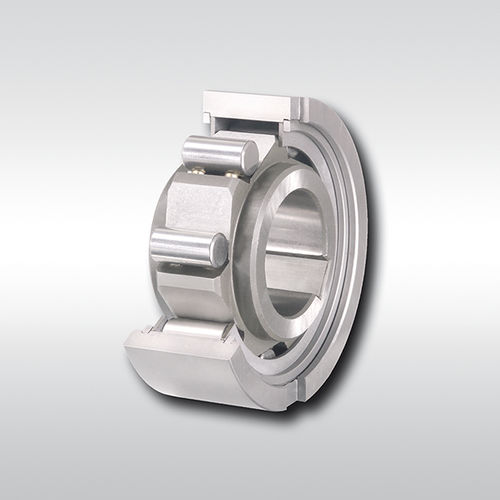

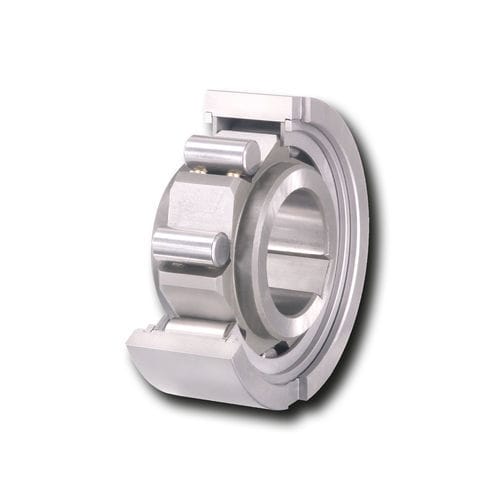

One-way roller clutch FSN series
internalwithout bearing functionindexing

One-way roller clutch - FSN series - RINGSPANN - internal / without bearing function / indexing
One-way roller clutch - FSN series - RINGSPANN - internal / without bearing function / indexing
One-way roller clutch - FSN series - RINGSPANN - internal / without bearing function / indexing - image - 2
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Technology
roller
Construction
internal, without bearing function
Applications
backstop, overrunning clutch, indexing
Torque

Min.: 11 Nm
(8.113184 ft.lb)

Max.: 3,000 Nm
(2,212.686448 ft.lb)

Diameter

Min.: 8 mm
(0.31 in)

Max.: 80 mm
(3.15 in)

Rotational speed

Min.: 500 rad.min-1
(79.5775 rpm)

Max.: 4,700 rad.min-1
(748.0282 rpm)

Description

Internal Freewheels FSN are roller freewheels without bearing support.

The freewheel is built into the customer housing. This makes compact, space-saving fitting solutions possible.

Nominal torques up to 3 000 Nm. The faces of both sides of the outer ring are provided with grooves for torque transmission.

Bores up to 80 mm.


Application as
  • Backstop
  • Overrunning Clutch
  • Indexing Freewheel
