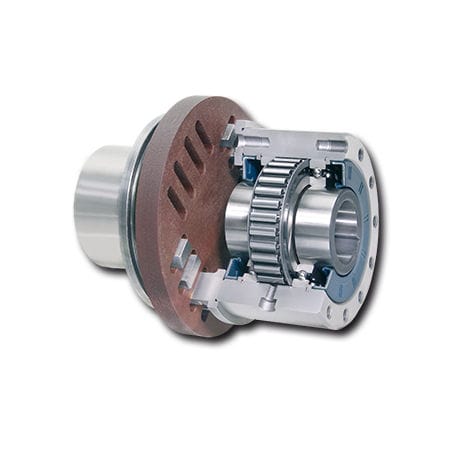

one-way clutch with coupling / full-face / with internal bearings / backstop
FBL series



  • Construction:

    with coupling, full-face, with internal bearings

  • Applications:


  • Torque:

    Min.: 85 Nm (62.6928

    Max.: 8,000 Nm (5,900.4972

  • Diameter:

    Min.: 20 mm

    Max.: 95 mm

  • Rotational speed:

    Min.: 750 rpm (4,712.39 rad.min-1)

    Max.: 2,600 rpm (16,336.28 rad.min-1)


The device incorporates complete Free wheels FBL with RINGSPANN shaft coupling, which are sealed sprag free wheels with ball bearings used for coupling two shafts. They are supplied oil-filled and ready for installation. The sprags are available in three types.
The free wheels FBL are used generally as overrunning Clutches. This only describes the standard type. Two other types are available for extended service life with bores up to 140 mm and Nominal torques up to 8 000 Nm. Numerous bores are also available. The torsionally stiff shaft coupling can accept large radial and angular shaft misalignments, without reactive forces affecting neighboring bearings.

For technical enquiry and performance data for this product contact
