Sprag one-way clutch FA series
with internal bearingsfull-facebackstop

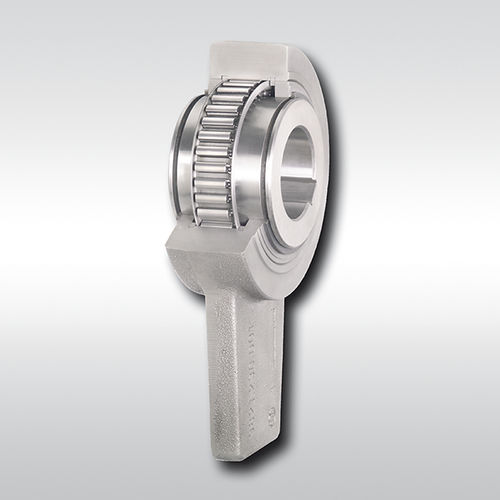

Sprag one-way clutch - FA series - RINGSPANN - with internal bearings / full-face / backstop
Sprag one-way clutch - FA series - RINGSPANN - with internal bearings / full-face / backstop

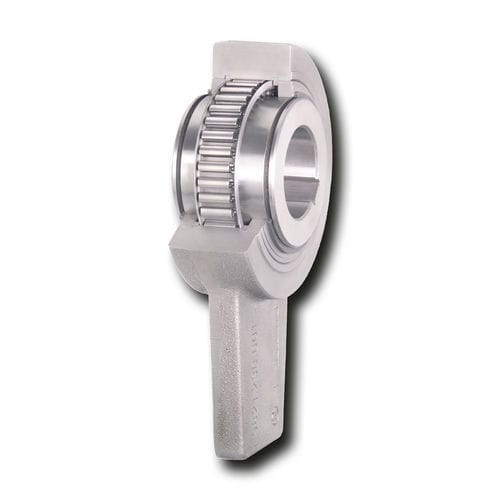

Sprag one-way clutch - FA series - RINGSPANN - with internal bearings / full-face / backstop - image - 2
Add to favorites
Compare this product
Go to the RINGSPANN website for more information

Characteristics

Technology
sprag
Construction
with internal bearings, full-face
Applications
backstop
Other characteristics
low-speed
Torque

230 Nm, 630 Nm, 1,600 Nm, 2,500 Nm
(169.639294 ft.lb, 464.664154 ft.lb, 1,180.099439 ft.lb, 1,843.905373 ft.lb)

Diameter

Max.: 85 mm
(3.35 in)

Min.: 20 mm
(0.79 in)

Rotational speed

180 rad.min-1, 260 rad.min-1, 340 rad.min-1, 500 rad.min-1
(28.6479 rpm, 41.3803 rpm, 54.1127 rpm, 79.5775 rpm)

Description

Complete Freewheels FA with lever arm are sprag freewheels with sleeve bearings. They are grease-lubricated and therefore maintenance-free.

Besides the standard type, the type with RIDUVIT® is available for extended service life.

Nominal torques up to 2 500 Nm.

Bores up to 85 mm. A multitude of standardized bore diameters are available with short delivery times.


Application as
  • Backstop
  • Indexing Freewheel
For application as backstop in installations with low speeds in freewheeling operation. For application as indexing freewheel in installations with low to medium total number of actuations.
