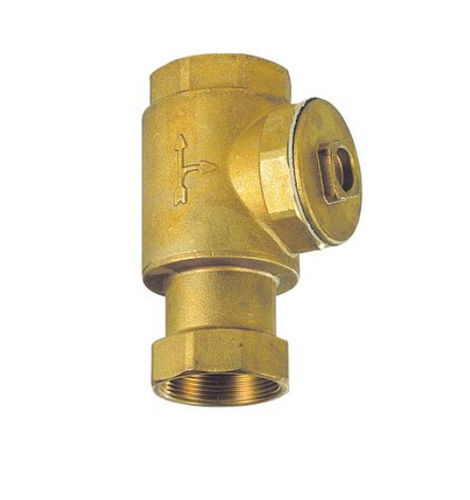

Disc check valve 308 series

femalebrass

The device allows the flow of direction by the indication of arrow. Its position is vertical but it allows a straight or square flow of direction by inverting the throttle. It is also made from natural rubber gasket and brass disc. The cap of the said device can be removed. SPECIFICATIONS ; • - Respect the flow direction indicated by the arrow • - Female / female type • - Nylon throttle • - Perfect centering of the throttle on the seat thanks to the double axial and latéral guidance • - Low opening pressure • - Better mechanical strength thanks to the brass CW617N body • - Ail positions with SS 302 spring • - Excellent low and high pressure tightness thanks to the NBR gasket USE: • - Heatmg. drinkable water. cold and hot water • - Min Température Ts : - 10°C • - MaxTemperature Ts :+ 110°C • - Max Pressure Ps : 16 bars up to DN 1*. 10 bars from 1"1/4 to 2“ and 8 bars over OPENING PRESSURE : • Opening pressure between 20 and 200 mbar RANGE : Threaded BSP cylindrical female from DN 3/8‘ to DN 4“
