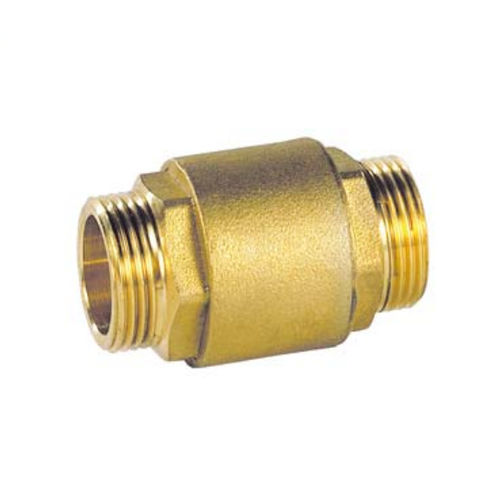

Disc check valve 328 series
male-malebrassspring

disc check valve
disc check valve
Add to favorites
Compare this product

Characteristics

Type
disc
Body
male-male
Material
brass
Other characteristics
spring
Temperature

Min.: -10 °C (14 °F)

Max.: 110 °C (230 °F)

Pressure

16 bar (232.1 psi)

DN

0.375 in, 0.5 in, 0.75 in, 1 in

Description

The 328 ball check valve is utilized for all common fluids and can be mounted in any position with regards to the flow direction that is indicated by the arrow. It features an NBR gasket and a nylon throttle. It has an operating temperature range of 10°C up to 110°C and gas a maximum pressure of 16 bar. SPECIFICATIONS ; • - Respect the flow direction indicated by the arrow • - Female / female type • - Nylon throttle • - Perfect centering of the throttle on the seat thanks to the double axial and latéral guidance • - Low opening pressure • - Better mechanical strength thanks to the brass CW617N body • - Ail positions with SS 302 spring • - Excellent low and high pressure tightness thanks to the NBR gasket USE: • - Heatmg. drinkable water. cold and hot water • - Min Température Ts : - 10°C • - MaxTemperature Ts :+ 110°C • - Max Pressure Ps : 16 bars up to DN 1*. 10 bars from 1"1/4 to 2“ and 8 bars over OPENING PRESSURE : • Opening pressure between 20 and 200 mbar RANGE : Threaded BSP cylindrical female from DN 3/8‘ to DN 4“
