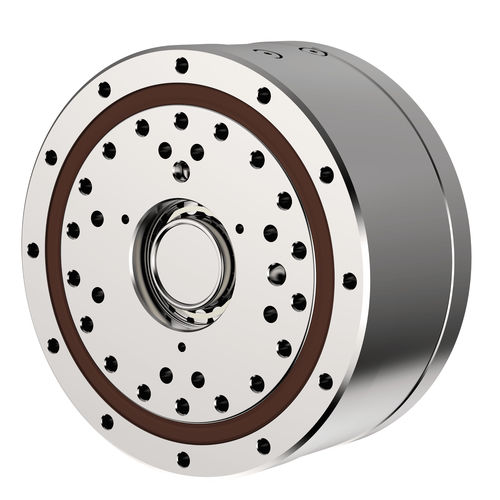

High-precision gear reducer TwinSpin T seriescycloidalcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Number of stages
- single-stage
- Performance
- high-precision, high-performance, low-noise, high-efficiency, high-torque, maintenance-free, high-rigidity, zero-backlash, high-capacity
- Applications
- for servo motors, for wheel and track drives, for height adjustment, for pharmaceutical products, for shafts, for textiles, for AGV, for gear wheels, centrifuge, for electrical drives, winch, for machinery, for robots, for rack-and-pinion drives, for automation, for medical devices, for milling applications, for actuators, for valves, for lathes, for marine applications, antenna, for printing machines, machine, drive, for material handling equipment, for food industry machinery, for welding machines, for mining applications, for valves, packaging machine, for doors
- Other characteristics
- flange, compact, rack-and-pinion, for telecommunications equipment, NEMA 23, high-temperature, industrial, modular, miniature, IP65, for harsh environments, for automotive applications, for food, IP67, motor, low-speed, with flange, for injection molding machines, for robotics, NEMA 34, rotary table, NEMA 17, for pulley drives, for packaging machines, single reduction, for grinding machines, for milling machines, shaft-mounted, for machine tools, vertical, for motor coupling, mechanical transmission, reversible, ATEX, multi-turn, for food packaging, high-quality
- Rotational speed
2,000 rpm
(12,566.37 rad.min-1)
Description
The T series represents a wide range of TwinSpin high precision reduction gears with a cylindrical shaped case. These gears comprise an accurate reduction mechanism and high-capacity radial and axial cylindrical roller bearings.
This design of reduction gears allows the mounting of the load directly on the output flange or the case, without the need of additional bearings. The T series high precision reduction gears are characterized by a modular design, which allows the mounting of your desirable type of motor by means of a connection flange.
The T series includes gears that are not completely sealed; an inlet flange and a gasket kit have to be used for the sealing. Upon the customer’s request, SPINEA is able to supply a completely sealed reduction gear with a flange according to the customer’s motor.
