disc valve / lever / shut-off / flow control
BM5 series Tartarini

{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    lever

  • Function:

    shut-off, flow control

  • Media:

    for hydrocarbons, for gas, for air, for natural gas, propane

  • Temperature:

    Min.: -20 °C (-4 °F)

    Max.: 60 °C (140 °F)

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 100 bar (1,450.4 psi)

  • DN:

    Min.: 25 mm

    Max.: 150 mm

Description

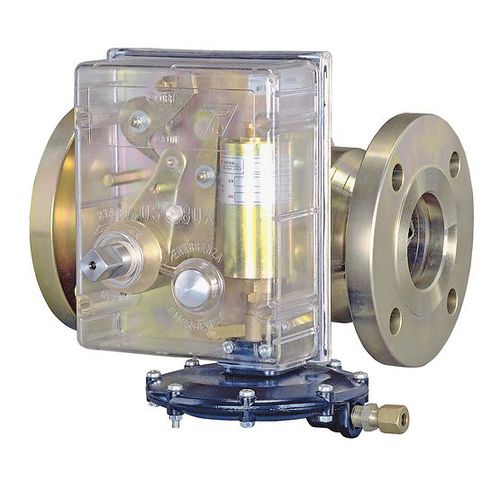

The BM5 Slam-Shut Valve is suitable for integration as a safety instrument in gas distribution piping and regulating stations. It is an auto shutoff equipment that is efficient in propane, butane, city gas or nitrogen controlling or distribution installation.

The device functions to shut off the flow of gas as the pressure increases or decreases below the affixed rate. The sleeve type valve does not need outer bypass in opening the valve. It has various Pressure Equipment Directive 97/23/EC categories that proves its safety standards.
