Paint pump Leopard 35-70
for adhesivesmanualnormal priming

paint pump
paint pump
paint pump
Add to favorites
Compare this product


Characteristics

Fluid
paint, for adhesives
Operation
manual
Priming
normal priming
Technology
piston
Mobility
stationary
Domain
industrial
Applications
high-pressure, service, feed, adjustment
Material
stainless steel, steel
Fluid specification
for low-viscosity fluids, for high-viscosity fluids
Other characteristics
compact, integrated
Flow

4.2 l/min
(1.10952 us gal/min)

Pressure

20 bar, 250 bar
(290.075 psi, 3,625.943 psi)

Fluid temperature

Min.: 5 °C
(41 °F)

Max.: 80 °C
(176 °F)

Weight

26 kg
(57.32 lb)

Description

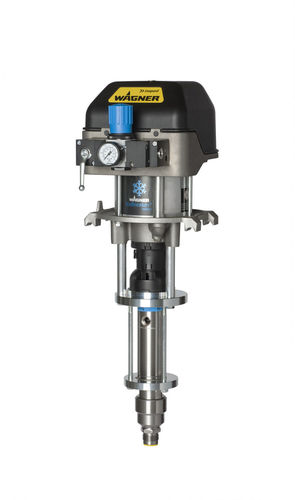

High-pressure piston pump, stainless steel, for airless and AirCoat applications of up to 250 bar and 4 l/min. Ideal for e.g. industrial coatings in the wood and metal industry. Reliable Air motor with particularly low pulsation and excellent efficiency. The intelligent design prevents loss of power due to ice formation under a wide range of operating conditions. Easy handling All operating elements are ergonomically integrated in the compact maintenance unit. This ensures easy adjustment and operation of the pump. Low maintenance The easily accessible separating agent chamber, easy-to-replace packs, and the ability to disassemble the paint section for maintenance purposes independently of the air motor significantly reduce maintenance requirements and service times. Flexible applications The paint section is completely made of stainless steel and is suitable for processing both solvent-based and water-based materials.
