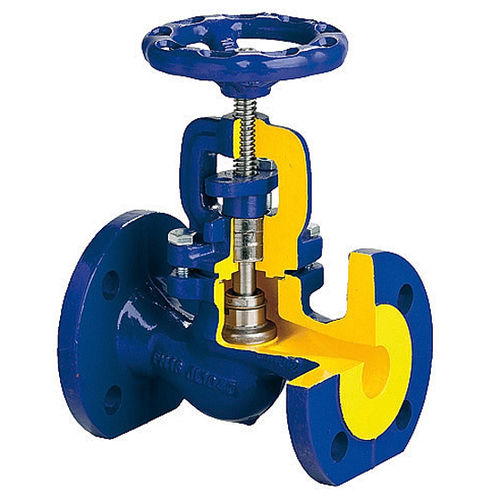

Globe valve zGLO 215with handwheelstopfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- stop
- Media
- for water, for oil, for steam, for compressed air
- Body
- flange, cast iron, bronze, cast steel
- Applications
- industrial, for heating, for refrigeration, for shipbuilding
- DN
Max.: 300 mm
(11.811 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 160 bar
(2,320.6 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 550 °C
(1,022 °F)Min.: -60 °C
(-76 °F)
Description
Material: Grey cast iron, nodular cast iron, bronze, cast steel, stainless steel
Working position: Any
Features
•high tightness (leakproofness class – A acc. to EN -12266 – 1)
•compact settlement
•environment-friendly
•tests acc. to EN – 12266 – 1
•flanges drilled according to EN 1092-2 for body material A, C, E
•flanges drilled according to EN 1092-1 for body material F
•face-to-face dimension according to EN 558 series 1
Bellow sealed stop valves, ends flanged, form straight 215
Grey cast iron EN-GJL-250 A
Stem and disc connection - fixed - rolled stem, disc and seat ring - stainless steel
