Angle seat valves

DN: 15 mm
Pressure: 16 bar
Temperature: 10 °C - 60 °C

... • Flow rate regulator valve. • 100% factory tested. • A cone closing system on top of an EPDM O-Ring. • Connections: 3 pieces union, solvent female, solvent male and male threaded. • Minimal pressure drop. • Easy disasembling. • ...

DN: 25 mm - 50 mm
Pressure: 16 bar

... Angle valve with threaded terminals for potable water or non-aggressive liquid systems. Flow regulation by rotation of the stem. Also available with counter-clockwise closing system. Vertical installation. - Materials: ...

DN: 0.5 in - 2 in
Pressure: 0.9 bar - 16 bar
Temperature: -10 °C - 80 °C

... The ADCATrol PAV21 is a series of pneumatic angle seat shut-off valves with piston actuators. These valves are suitable for use with the most common process fluids such as steam, water, ...

Pressure: 0.6 MPa - 1.2 MPa

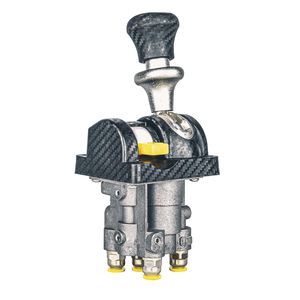

... The control valve in the cab has 4 positions and is used in conjunction with the power take-off to achieve the vehicle's lifting, mid-stop, lowering, and power take-off functions. The valve body is made of aluminum profile ...

DN: 45 mm
Temperature: 180 °C

... Port size 2" BSP Female Thread (ISO 228/1) - Input. 2" BSP Female Thread (ISO 228/1) - Output. Pressure range Min. 0/Max. 150 Housing material Stainless Steel 316 Microcast (CF-8M). Piston - Stainless Steel 316. Spring - Steel (SAE 6150) - White Zinc ...

DN: 20, 25 mm
Pressure: 1.6 MPa
Temperature: 5 °C - 95 °C

... HTW-71-DV Series electric dynamic pressure balance valve is a dynamic equilibrium with the electric control integration products, mainly for air-conditioning equipment, HVAC system at the end (such as air box, new air handling units, ...

DN: 0.75 in - 5 in
Pressure: 10 MPa - 76 MPa
Temperature: -29 °C - 425 °C

... Product Features Good valve core stability. The sturdy and durable guide cylinder provides excellent valve core stability and can reduce vibration and mechanical noise. Greater flow capacity. The flow-type flow channel ...

DN: 10 mm - 100 mm
Pressure: 0 bar - 160 bar
Temperature: -20 °C - 220 °C

... Large Flux, low resistance, no water hammer. Y type shape enlarged the flowing section, which could raise the flux by %30 and make flow more smooth. Super long working life, which help the stem adjust and lubricate itself automatically. ...

DN: 15, 20 mm
Pressure: 16 bar

... Shaft: Brass CW614N Fitting: Stamped brass CW617N O-rings: NBR 70 SH Plug: Vulcanized brass EPDM 70 SH Seat: polyacetal Complies with all the specifications UNE 19804 Test pressure: 25 bar ANT: Antifraud ...

DN: 10 mm - 65 mm
Pressure: 0 bar - 16 bar
Temperature: -10 °C - 180 °C

... Body material: stainless steel Pressure:0-16bar Orifice:10-65mm Pipe size:screw-type welded-type Fluid Media: Air etc Application industry Beer beverage, disinfection equipment, rubber machinery, textile printing and dyeing, pharmaceutical, medical ...

DN: 0.5 in - 2 in
Pressure: 16, 40 bar
Temperature: 0 °C - 187 °C

... Modulating valve with stainless steel or brass body. Angled seat pneumatic valve with electronic control of flow rate modulation. Electronic flow modulation with exclusive MAROS technology Parabolic ...

DN: 15 mm - 50 mm
Pressure: 10 bar
Temperature: 0 °C - 60 °C

... The angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids. Technical features: Solvent welded metric sockets Can be installed in any ...

DN: 15 mm - 65 mm
Pressure: 2 bar - 16 bar
Temperature: -10 °C - 180 °C

... Repeatability: < 1.0% FS Failsafe: valve closes (NC) in the event of voltage failure, optionally outlet fail freeze feature Control_ valve_body: bronze, optionally SST 316L Cone_seal: PTFE Proportional_ valve_body: ...

DN: 8 mm - 100 mm
Pressure: 25, 40 bar
Temperature: -196 °C - 50 °C

... Ellips series 1700 - pneumatic cryogenic globe Valve High quality stainless steel globe valve for gaseous and liquid media at cryogenic temperatures. The bevel seat allows an optimal flow-rate value. ...

... The Valve seat angle PP30480 has its various types. Those are PP3048020005 (20mm x 1/2"), PP3048025007 (25mm x 3/4"), PP3048032010 (32mm x 1"), PP3048040013 (40mm x 1 1/4"), PP3048050015 (50mm x 1 1/2") ...

DN: 15 mm - 50 mm
Temperature: -10 °C - 180 °C

... KTN 411GS valves with inclined seat, are remotely activated with compressed air , which starts a pneumatic actuator that raises seat for continuous processes. By supplying compressed air, the control ...

DN: 0.5 in - 2 in
Pressure: 0 bar - 25 bar
Temperature: -10 °C - 200 °C

... Series PVS100 Pressure Actuated Angle Seat Valves are ideal for on/off flow control of most fluids compatible with bronze or stainless steel. Tight shutoff is provided by PTFE seat seal. ...

DN: 15 mm - 50 mm
Pressure: 16 bar - 40 bar
Temperature: -10 °C - 180 °C

... The 21IA4T15GC is a 2-way angle seat air operated valve that is capable of providing high flow rates. Its body has been constructed out of stainless steel and it features a corrosion resistant actuator ...

DN: 15 mm - 600 mm
Pressure: 16 bar - 420 bar
Temperature: -29 °C - 560 °C

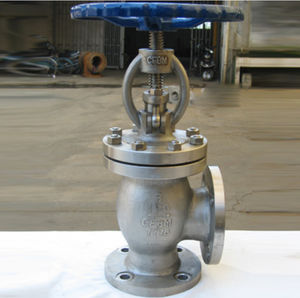

... DIN GS-C2 Angle Globe Valve Fabricator: DIN 3356 Globe Valves, DIN GS-C2, 4 Inch, DN100, Class 300 LB, PN50, Flanged RF Ends, Test EN 12266-1/2. Design standard: DIN 3356. Body material: GS-C25. End ...

DN: 15 mm - 100 mm
Pressure: 16 bar

... Angle seat pattern globe valve Fig. VS 104 BODY - INOX CF8M 2 - DISC - INOX CF8M 3 - STEM - INOX 316 4 - GLANDPACKING - Graphite-PTFE 5 - GLAND - INOX CF8M 6 - BONNET - INOX CF8M ...

DN: 15 mm - 50 mm
Pressure: 0 bar - 13 bar
Temperature: -10 °C - 180 °C

... Functioning Body material Stainless Steel CF8M (Aisi 316) ACTUATOR Stainless Steel CF8 (Aisi 304) Pipe Size G1/2” – G3/4″ – G1″ – G1 1/4″ – G1 1/2″ – G2″ SEAL PTFE PIPE SIZE ACTUATOR G1/8″ Options 3/2 Command Pilot Visual Positioning Indicator (Standard) Electrical ...

DN: 40 mm
Pressure: 0 bar - 16 bar
Temperature: -10 °C - 180 °C

... piston-operated angle seat valve type SC01 G 1 1/2" inch female thread DN40 closing with flow direction made of stainless steel 1.4408 working function: - closing with flow direction actuator: - 63 ...

DN: 15 mm - 65 mm
Pressure: 6 bar - 8 bar
Temperature: -15 °C - 225 °C

... Body in microcast stainless steel CF8M/316 Actuator in stainless steel AISI 304 Normally-closed, normally-open, double-effect function Seal in modified PTFE or PEEK Packing in PTFE and FPM Guided shaft for stable axial movement Self-centering plug ...

... actuator that can reorient the pistons opening, limit, and valve flow. Furthermore, it is ideal for any angle seat valve and emergency brake in times of mechanical failures. The Angle ...

DN: 0.5 in - 2 in
Pressure: 0 bar - 7 bar
Temperature: -10 °C - 80 °C

... Description 2/3-way valve Impulse without differential pressure Body Stainless Steel, Red brass ...
