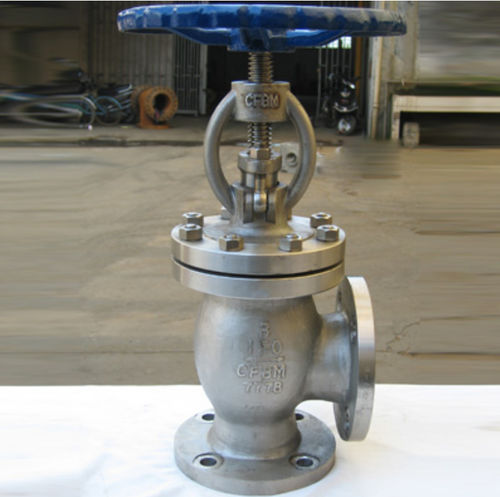

Globe valve with handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatic, electric
- Media
- for water, for chemical products
- Body
- flange, angle seat, stainless steel, carbon steel, alloy
- Applications
- for the chemical industry, for the petroleum industry, for shipbuilding, for water treatment, power line
- Other characteristics
- standard, DIN
- DN
Max.: 600 mm
(23.622 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 420 bar
(6,091.6 psi)Min.: 16 bar
(232.1 psi)- Temperature
Max.: 560 °C
(1,040 °F)Min.: -29 °C
(-20 °F)
Description
DIN GS-C2 Angle Globe Valve Fabricator: DIN 3356 Globe Valves, DIN GS-C2, 4 Inch, DN100, Class 300 LB, PN50, Flanged RF Ends, Test EN 12266-1/2.
Design standard: DIN 3356.
Body material: GS-C25.
End connection: RF.
Face to face: DIN 3202-F32.
Test and inspection: EN 12266-1/2.
Features: The valve can make the medium flowing through the valve change lowing direction, so generating a certain pressure loss. The valved entry has been designed as pipe-connection and a flat bottom.
