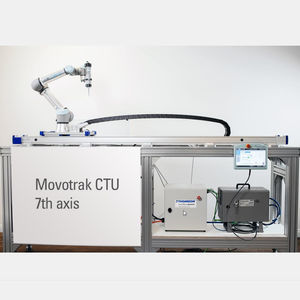

Horizontal linear axis
Stroke : 100 mm - 3,000 mm
Speed: 1,000 m/s
Force: 10,900 N
... certified horizontal positioning axis • Ready to use complete system solution • Software plugin (UR Caps) to UR control system included • High level of positioning precision and repeatability • Very ...
Stroke : 15 mm - 450 mm
Force: 90 N - 260 N
The LEPK linear units are designed for horizontal or vertical mounting. They are driven by an ISO 6432 pneumatic cylinder that can be easily removed when it needs to ...
Stroke : 50 mm - 500 mm
Speed: 800 mm/s
Motor output (W): 50 Stroke (mm): 50 – 500 Maximum payload (kg): 5 – 10 (horizontal), 1.5 – 3 (vertical) Maximum speed (mm/s): 800 (stroke 450mm max., lead 12mm) Positioning repeatability (mm): ±0.02
Stroke : 50 mm - 700 mm
Speed: 800 mm/s
Motor output (W): 50 Stroke (mm): 50 – 700 Maximum payload (kg) (Note 1): 12 – 30 (horizontal), 4 – 8 (vertical) Maximum speed (mm/s) (Note 2): 800 (stroke 550mm max., lead 12mm) Positioning repeatability (mm): ±0.02
Stroke : 50 mm - 150 mm
Speed: 600 mm/s
Motor output (W): 50 Stroke (mm): 50 – 150 Maximum payload (kg): 4 (horizontal), 1.9 (vertical) Maximum speed (mm/s): 600 Positioning repeatability (mm): ±0.02
Stroke : 0 mm - 5,677 mm
Speed: 0 m/s - 10 m/s
Force: 4,367 N
... conditions, we are supplementing our series of toothed belt driven linear axes of the type RK MonoLine with a completely corrosion-protected variant in the common size 80. The compact linear units ...
Stroke : 10 mm - 2,769 mm
Speed: 2 mm/min - 1,020 mm/min
Force: 500 N - 2,100 N
E-II-stainless: 100% corrosion-resistant single-tube linear units The E-II single-tube linear unit is an all-rounder for format adjustment. The E-II stainless steel ...
Stroke : 5,614, 5,384 mm
Speed: 5 m/s
Force: 4,367, 1,500 N
... positioning accuracy and repeatability – in particular for use as a vertical axis in a multi-axis system with travelling base profile and stationary carriage/motor. As a horizontal axis ...
Stroke : 50 mm - 300 mm
Speed: 300 mm/s
Force: 3 kgf
【Technical Feature】 FSL30 Series are trapezoidal rods ball screw linear guides. With delicate design and strong practicability, FSL30 is the best choice for customers who require compact, light and micro modules. 【Range ...
Stroke : 50 mm - 1,000 mm
Speed: 40 mm/s - 250 mm/s
Force: 10 kgf - 25 kgf
... Technical Feature】 FSL40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis ...
Stroke : 100 mm - 1,500 mm
Speed: 55 mm/s - 300 mm/s
Force: 20 kgf - 60 kgf
Electric Linear Actuator System-Manufacturer Ball screw driven motorized Linear Guide or named linear robot are equipped with a dust-proof strip to prevent wear particles from flying ...
Stroke : 0 mm - 5,500 mm
... sufficient, the HIWIN HT linear axes extend the radius of action. There are different variants available: As the 7th axis in a freely configurable design or the 7th Axis Kit including ...
... mm and with 2, 4, 6 or 8 steel slides with aluminium clamping plates. (* at present only 5 mm available) Profill length 290 mm up to 2990 mm in 100 mm increments available! Two drives – one axis! The ...
Stroke : 100 mm - 1,000 mm
Speed: 150 mm/s - 800 mm/s
Force: 200 N - 1,000 N
The Cyltronic linear axis CTL-060 is a compact spindle drive with integrated servo motor and integrated servo controller. The integrated internal linear guide is protected from external ...
Stroke : 1 mm - 3,000 mm
Speed: max 1.0 m/s
Force: 10 N - 300 N
Vertical Telescopic system has been studied to satisfy requests of maximum vertical stroke in low height locations. Two overlapped guides go down simultaneously, controlled by one reduction unit and trasmission ...
Stroke : 50, 25 mm
Speed: 30 mm/s
Force: 45 N
... integrate for horizontal and vertical applications This compact and robust linear axis is easy to integrate and is characterized by an optimum price-performance ...
Stroke : 14 m
Mechbelt TM is a belt-driven linear unit for 1, 2 or 3 linear movements of up to 14 metres in both horizontal and vertical directions. With dual-mounted ...
Speed: 4 m/s
Force: 65 N - 180 N
The HL series is a linear motor axis that incorporates tight and accurate recirculating ball bearings. The model also has an absolute gauging system, and a mechanized lubrication system. It has a rated ...
Stroke : 50 mm - 400 mm
Force: 120 N - 1,400 N
Stroke : 300, 450 mm
Speed: 4 m/s
Force: 180, 380 N
Horizontal, vertical, ready for installation The HL linear motor axis provides the most modern drive technology – highly integrated and ready for installation. It allows flexible use ...
Mechanical Linear Actuators No Part Selection! No Designing! No Assembly! IMAO's pre-assembled Linear Unit can be used with simple manual adjustments without complex processes of parts ...
Stroke : 0 mm - 5,620 mm
Speed: 0 m/s - 10 m/s
Force: 2,100, 5,200, 7,600 N
... is reversed. Linear Unit GSF 8 40 R10 Linear Unit KLE 6 60x60 LR Linear Unit LRE 8 D14 80x40 ZU 80 R25 Linear ...
Stroke : 500 mm - 3,000 mm
7th axis for robots With the so-called 7th axis linear adjustment, the radius of action of robots is extended and thus they become much more flexible in their applications. Flexible ...
... ensures accurate positioning without constraints on the reducer shaft. Modular : the translation axis can be fitted to the 7th axis of the robot or to a positioning axis ...
