Pneumatic linear unit LEPK series
precisionverticalhorizontal

pneumatic linear unit
pneumatic linear unit
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Other characteristics
precision, vertical, horizontal, adjustable, dovetail
Stroke

Min.: 15 mm (0.591 in)

Max.: 450 mm (17.717 in)

Force

Min.: 90 N

Max.: 260 N

Description

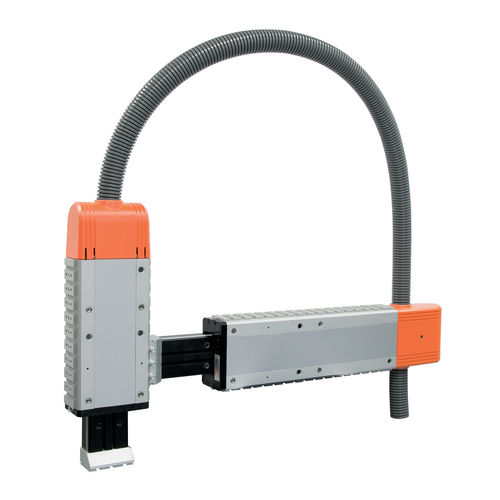

The LEPK linear units are designed for horizontal or vertical mounting. They are driven by an ISO 6432 pneumatic cylinder that can be easily removed when it needs to be replaced. The precision round bars, which are hardened and incorporated in the rectangular profile enclosed by the body, provide a reliable guide system without any backlash, jointly with the adjustable casters. The stoke is limited by mechanical stops that are provided with a fine adjustment device and hydraulic shock-absorbers. A LED visible through the openings provided in the body indicates the switching status. The final positions are controlled by inductive sensors (included in the supply). The front plate comes with V-Lock connections. Dovetail guides are provided on both sides of the body for the connection of the V-Lock or QS system. The area of the body where to make the transversal grooves for connection with type K fixing elements can be specified at the time of the order. The encapsulated construction ensures the elimination of any points of hazard and increased silent operation. The linear units are available in two versions: • version A comes with a retracted position and an adjustable extended position; • version B is designed to achieve a second supplementary adjustable extended position. The LEPK units for vertical mounting can be equipped with a return spring to balance the weights. In the event of an emergency or a drop in pressure, the vertical slide is automatically pulled into the upper end-of-stroke position (slide fully retracted). For the orderly arrangement of cables and pipes, a hose pipe can be ordered.
