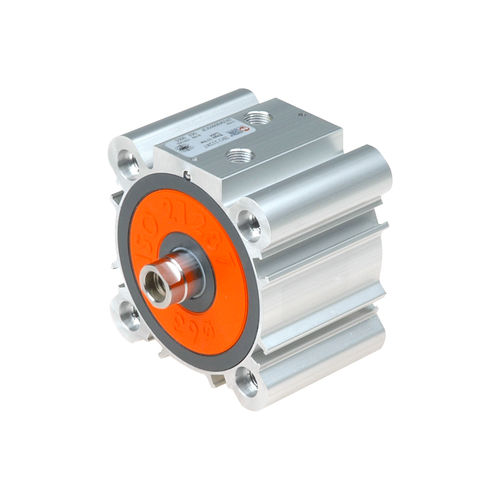

Pneumatic cylinder LINER seriessingle-actingdouble-actingcompact

pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product
indicative price

Characteristics

Type
pneumatic
Technology
single-acting, double-acting
Other characteristics
compact, ISO, ISO 21287, for heavy loads, precision, heavy-duty
Stroke

Min.: 5 mm (0.197 in)

Max.: 500 mm (19.685 in)

Description

Com pod cylinder to ISO 21287, UNER series, available in different versions to meet all possible requirements: • With or without magnet • Double oding, single or through piston rod • Double oding, perforated through piston rod • Single oding, extended, retracted or through piston rod • Single oding, perforated through rod • Double oding anti-rotating version and double acting through piston rod • Polyurethane or FKM/FPM gaskets (for high temperatures) also available • Dimensions and centre distances to ISO 21287 The heads have been eliminated for ease of installation, improved sturdiness and precision. The metal lining is designed to withstand heavy-duty work, tensile stress and impact. Technopolymer parts can withstand dynamic and pneumatic thrust. The lining virtually acts as a 'bearing' to which most of user accessories are attached. The wide range of anchors provide numerous fixing points. Retractable magnetic limit switches can be mounted to identify the position in the cylinder grooves. Short description: Compact cylinder ISO 21287 series LINER male piston rod Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items DIAMETER: - Bore 0020 mm - Bore 0025 mm - Bore 0032 mm - Bore 0040 mm - Bore 0050 mm - Bore 0063 mm - Bore 0080 mm - Bore 0100 mm Maximum Stroke: 500 mm Minimum Stroke: 5 mm SEAL: - FKM/FPM gaskets - Polyurethane gaskets TYPE- - 28 - ISO 21287 male rod - 29 - ISO 21287 female rod
