Rotary actuator R3 series
hydraulicrack-and-piniondouble

rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
hydraulic
Technology
rack-and-pinion
Other characteristics
double, flange-mounted, with external shock absorber, ATEX
Bore

Min.: 16 mm
(0.63 in)

Max.: 40 mm
(1.57 in)

Pressure

Min.: 3 bar
(43.5 psi)

Max.: 7 bar
(101.5 psi)

Force

Min.: 74 N

Max.: 560 N

Torque

Min.: 0.9 Nm
(0.664 ft.lb)

Max.: 22 Nm
(16.226 ft.lb)

Ambient temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Description

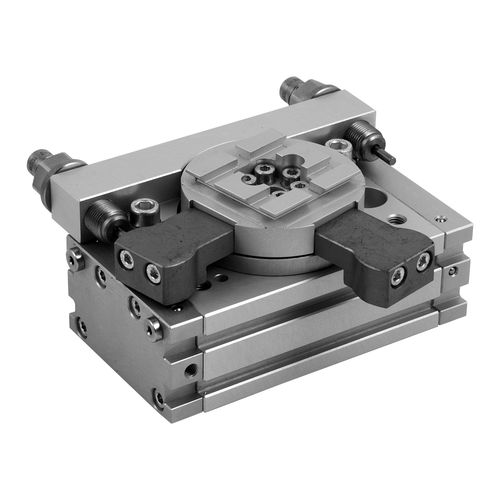

Dual-rack actuator with automatic adjustment for wear. Hydraulic shock absorbers are arranged externally and operate at a distance from the axis of rotation which is considerably higher than for internal ones. This means that the absorbable kinetic energy is 4 to 8 times higher. It is reduced in length as there are no adjusting screws. A 90° and a 180° versions are available. Grooves are provided in the body to fix retractable magnetic proximity sensors, two on each side. A hole has been drilled in the flange for the passage of air pipes or power cables. N.B.: We always suggest to use flow microregulators. During the setup of the actuator, start with CLOSE flow microregulators, and open gradually till the achievment of the required speed. Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items Actuators Handling bore (mm): 2x16
