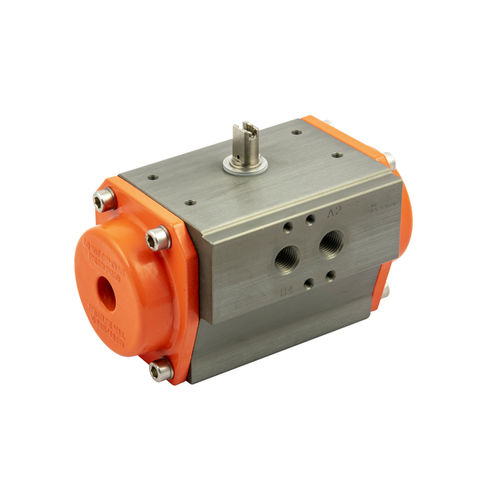

Rotary actuator R4 series
pneumaticpistondouble-acting

rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
pneumatic
Technology
piston
Configuration
double-acting
Material
extruded aluminum
Norms
ISO
Applications
industrial
Other characteristics
compact, high-torque, NAMUR, 0-90° swivel angle
Torque

Max.: 520.2 Nm (383.68 ft.lb)

Min.: 7.6 Nm (5.61 ft.lb)

Pressure

Max.: 8 bar (116 psi)

Min.: 3 bar (43.5 psi)

Ambient temperature

Max.: 80 °C (176 °F)

Min.: -20 °C (-4 °F)

Description

Sturdy, compact rotary actuators, suitable for operating industrial valves with ISO 5211 mounting flange and 0-90° swivel angle. The R4 actuator is the double-rack type, a technology that ensures constant twisting torque during rotation. The control valve can be fitted directly to the actuator using the NAMUR VDI\VDE-3845 interface or can be controlled remotely using the existing G (BSP) threaded connections. On the actuator, you can install specific accessories for the detection of limit switch positions (switch box). Given its specific application, the R4 actuator features high torque and reduced bending moment supported by the shaft.
