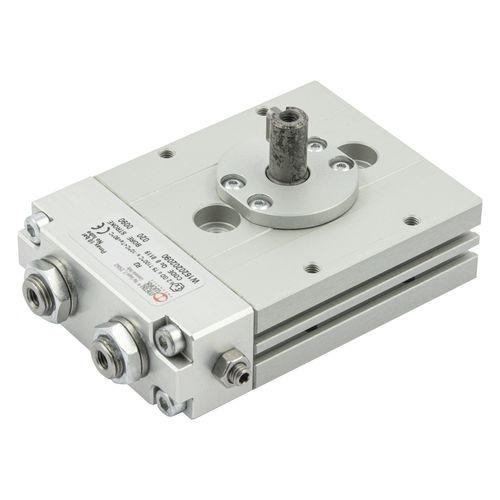

Rotary actuator R2 series
pneumaticrack-and-piniondouble

rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
pneumatic
Technology
rack-and-pinion
Other characteristics
double

Description

Actuator with double rack and play take-up. Four sizes 12, 16, 20 and 25. Two angles of rotation 90° and 180°. Stroke adjustment system for all sizes. Pneumatic cushioning for all sizes except the smallest. There are slots in the body to house a magnetic proximity sensor. Air supply, stroke adjustment and cushioning adjustment are all on the same side. N.B.: We always suggest to use flow microregulators. During the setup of the actuator, start with CLOSE flow microregulators, and open gradually till the achievment of the required speed. EAN code: 8024986205732 Short description: Rot. Act shaft s R2-12-90° Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items Actuators Functional denomination: Actuator 90° - 180° Max input pressure (bar): 007 Max temperature (°C): 60 Min input pressure (bar): 1.5 Min temperature (°C): 05 Serie di prodotto: Rotary actuator R2 Size: 12 Version: 90°-180° rotation

Catalogs

No catalogs are available for this product.
