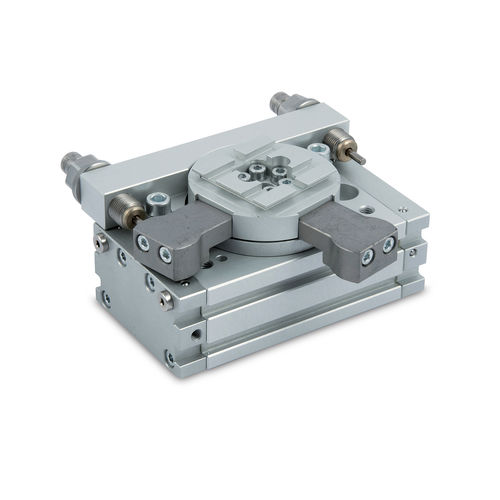

Rotary actuator R3K series
hydraulicrack-and-piniondouble

rotary actuator
rotary actuator
Add to favorites
Compare this product

Characteristics

Movement
rotary
Type
hydraulic
Technology
rack-and-pinion
Other characteristics
double, with external shock absorber
Force

Min.: 74 N

Max.: 450 N

Torque

0.9 Nm, 1.8 Nm, 4.6 Nm (0.66 ft.lb)

Description

An actuator with a double rack and play take-up. The hydraulic decelerators are mounted externally and act at a greater distance from the rotation axis compared to internal decelerators. This means the amount of kinetic energy absorbed is 4-8 times greater than with internal decelerators. Reduced longitudinal dimensions as there are no adjusting screws. Available in versions with 90° and 180° rotation. The typical V-Lock dovetail and grooves are present on the turntable and the lower part of the body. There are two grooves on either side for inserting retracting magnetic sensors. There is a hole in the flange for air pipes or power cables. N.B.: The use of flow microregulators is recommended. During setup, start with the microregulator CLOSED, then open it gradually until the desired speed is reached. EAN code: 8024986529722 Short description: Rot. Act flange+Ext. shock abs. R3K-16-90° Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items
