Ball screw linear axis rack-and-pinionautomaticprecision
Add to favorites
Compare this product
Characteristics
- Type
- rack-and-pinion, ball screw
- Other characteristics
- precision, for heavy loads, horizontal, adjustable, assembly, long-stroke, automatic, slide
- Stroke
Max.: 3,000 mm
(118.11 in)Min.: 1,000 mm
(39.37 in)- Speed
12 m/min, 15 m/min
- Force
Max.: 60 tf
Min.: 6 tf
Description
Overview

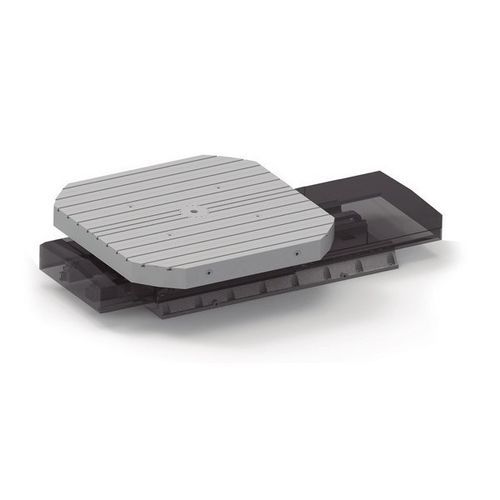

Zeatz provides a configurable linear option to integrate horizontal linear motion with rotary tables in CNC multi-axis systems. The modular solution supports ball screw drives for precise positioning or rack & pinion drives for extended travel, and is designed for industrial machining environments.
LINEAR Option
Key features
Maintenance-free linear sliders
The assembly uses maintenance-free linear sliders specified for up to 5 years or 20,000 km operation without inspection. This reduces downtime and simplifies lifecycle maintenance while ensuring consistent positioning accuracy under continuous use.
Measures
Technical dimensional tables and characteristic charts are provided for configuration and sizing (tables and charts available as images on the product page).
Horizontal linear movement integration
The system is engineered for horizontal mounting to integrate directly with rotary tables in multi-axis production setups. It supports high load capacities (6 T, 10 T, 20 T models) and includes automatic hydraulic locking for enhanced stability during machining cycles.
Technical specifications
Zeatz provides a configurable linear option to integrate horizontal linear motion with rotary tables in CNC multi-axis systems. The modular solution supports ball screw drives for precise positioning or rack & pinion drives for extended travel, and is designed for industrial machining environments.
LINEAR Option
- Linear option available for the following rotary table models: PH, PHT, MDH, PT
Key features
- Maintenance-free linear sliders rated for up to 5 years or 20,000 km of operation without checking
- Selectable linear drive: ball screw (precise positioning) or rack & pinion (long travel)
- Working position: horizontal
- Configurable to customer requirements
Maintenance-free linear sliders
The assembly uses maintenance-free linear sliders specified for up to 5 years or 20,000 km operation without inspection. This reduces downtime and simplifies lifecycle maintenance while ensuring consistent positioning accuracy under continuous use.
Measures
Technical dimensional tables and characteristic charts are provided for configuration and sizing (tables and charts available as images on the product page).
Horizontal linear movement integration
The system is engineered for horizontal mounting to integrate directly with rotary tables in multi-axis production setups. It supports high load capacities (6 T, 10 T, 20 T models) and includes automatic hydraulic locking for enhanced stability during machining cycles.
Technical specifications
- Compatible models: PH, PHT, MDH, PT
- Maintenance-free linear sliders: 5 years / 20,000 km operation without checking
- Linear drive types: Ball screw (precise control) or rack & pinion (longer travels)
- Working position: Horizontal
- Configurable to customer requirements
- Supported load capacities: 6 T, 10 T, 20 T models
- Automatic hydraulic locking for machining stability
- Modular solution for integration with rotary tables in CNC multi-axis setups
