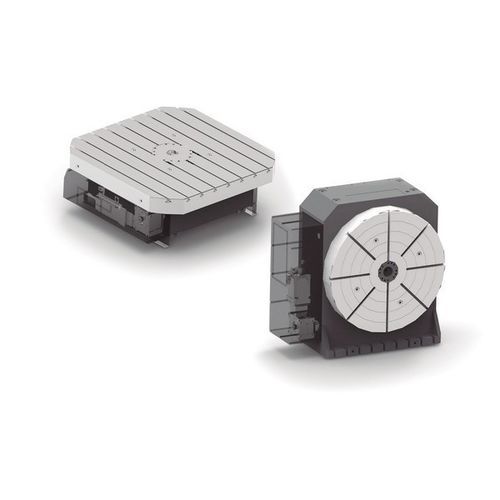

Hydraulic rotary table PH series

horizontalverticalfor machine tools

Product overview
The PH/PHV dual-lead rotary table is engineered for precision, continuous-motion indexing in CNC machining cells. It integrates a dual-lead worm gear drive and automatic hydraulic clamping to minimize backlash, provide stable locking and allow operation in horizontal or vertical mounting orientations. The modular design is configurable to customer specifications and supports integration with CNC machines. Designed and manufactured by ZEATZ.

Key features

• Automatic hydraulic clamping system for high locking force
• Working positions: horizontal and vertical
• Configurable to customer requirements (table plate, levelling, bench adaptation)
• Compatibility with different encoder models
• Option for through hole
• Designed for continuous indexing with reduced backlash

Dual-lead worm gear drive
The dual-lead worm gear provides continuous motion with reduced backlash and improved repeatability, resulting in enhanced positioning accuracy and smoother indexing suitable for multi-axis CNC operations.

Hydraulic clamping
Automatic hydraulic clamping ensures high locking force with minimal deformation, maintaining stability under heavy cutting loads and during high-speed or multi-directional machining.

Applications
Suitable for integration in CNC machine tools and production cells in sectors such as aerospace, heavy machinery and precision parts manufacturing where repeatable positioning and high torque are required.

Technical specifications

• High-precision, high-torque rotary table design
• Dual-lead worm gear drive for reduced backlash and continuous motion
• Automatic hydraulic clamping
• Horizontal and vertical mounting options
• CNC integration ready and configurable
• Options: table plate, levelling, bench adaptation, through hole
• Encoder compatibility: adaptable to different models
