Overview

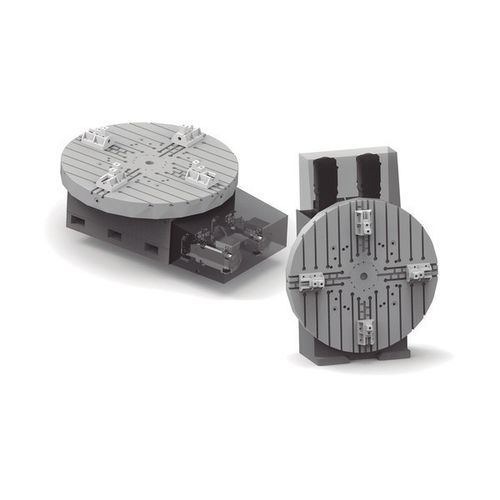

The PHT/PHVT turning rotary table is a dual-purpose rotary table designed for precision turning and milling in heavy-duty CNC applications. Usable in both horizontal and vertical orientations, it provides modular configuration options to match process requirements.

Key features

• Combined turning and milling capability.
• Two-speed gearboxes for process flexibility.
• "TWIN DRIVE" rotating drive for reduced backlash.
• Automatic hydraulic clamping system.
• Configurable dimensions and options to customer specifications.
• Adaptable to different encoder models.

Twin Drive system for heavy-duty torque
The TWIN DRIVE provides high torque output with minimal backlash, enabling stable machining under heavy cutting loads. Available diameters range from Ø1200 to Ø2500 mm with turning torque up to 1,700 Nm and milling torque up to 15,000 Nm.

Automatic hydraulic clamping for stable setup
The automatic hydraulic clamping secures the table with locking torque up to 50,000 Nm, ensuring repeatability and rigidity during both turning and milling operations in horizontal or vertical positions.

Measures / Performance
Available diameters: Ø1200 to Ø2500 mm
Turning torque (max): 1,700 Nm
Milling torque (max): 15,000 Nm
Locking torque (hydraulic clamping): up to 50,000 Nm
Load capacity: 5 T to 50 T depending on diameter and orientation

CNC integration and customization
Designed for integration into CNC lines and multi-axis automation. Modular design allows custom encoder options, bespoke table configurations and dimensional adaptations to specific processes, improving cycle efficiency and positioning accuracy.

Caractéristiques / Spécifications techniques

• Function: Dual-purpose (turning and milling)
• Orientation: Horizontal and vertical operation
• Series / Model: PHT / PHVT
• Available diameters: Ø1200 — Ø2500 mm
• Turning torque (max): 1,700 Nm
• Milling torque (max): 15,000 Nm
• Locking torque (hydraulic clamping): up to 50,000 Nm
• Load capacity: from 5 T to 50 T (depends on diameter & orientation)
• Drive: TWIN DRIVE rotating drive
• Gearbox: 2-speed gearboxes
• Clamping: Automatic hydraulic clamping system
• Encoders: Adaptable to different encoder models (custom options)
• Integration: Designed for CNC integration and multi-axis automation
• Customization: Configurable according to customer process and dimensional requirements
