Motor-driven rotary table MDH

horizontalverticalfor turning

Product overview

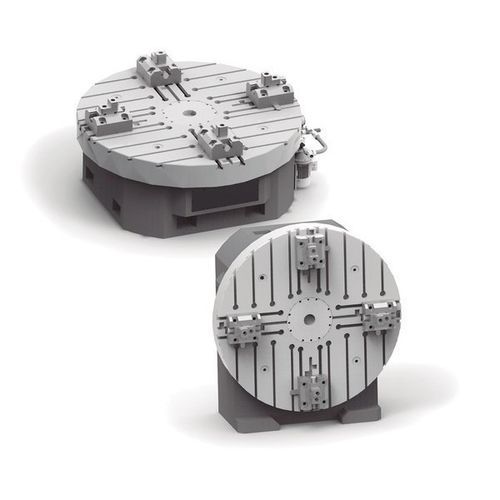

The MDH/MDHV turning rotary table combines direct drive motor technology with hydraulic clamping, delivering precise and powerful performance for both turning and milling operations. Designed for horizontal or vertical installation, this heavy-duty CNC table adapts to demanding machining environments.

Features

• Turning and milling uses.
• Direct drive motor (backlash-free).
• Automatic hydraulic clamping system.
• Working position: Horizontal or Vertical.
• Configurable according to customer's needs.
• Possibility of adaptation to different encoder models.

Direct drive motor — precision and smooth control
The direct drive motor ensures fast, backlash-free start/stop operations with high torque. Design supports turning speeds up to 350 rpm (MDH) or 300 rpm (MDHV), suitable for precision CNC workflows.

Hydraulic clamping and capacities
Integrated hydraulic clamping provides locking torque in the range of 5,000 to 10,000 Nm, securing the table under heavy machining loads and ensuring stability and repeatability. Rotary table diameters and load capacities are designed for robust industrial demands.

Caractéristiques / spécifications techniques

• Model series: MDH / MDHV
• Applications: Turning and milling
• Drive: Direct drive motor (backlash-free)
• Max turning speed: MDH up to 350 rpm; MDHV up to 300 rpm
• Hydraulic clamping: Automatic hydraulic clamping system
• Locking torque: Approximately 5,000 – 10,000 Nm
• Working positions: Horizontal or Vertical
• Rotary table diameters: Ø800 mm – Ø1500 mm
• Load capacity: Approximately 4 – 20 T (depending on orientation and model)
• Configurable options: Custom configurations to customer requirements
• Encoder: Possibility of adaptation to different encoder models
