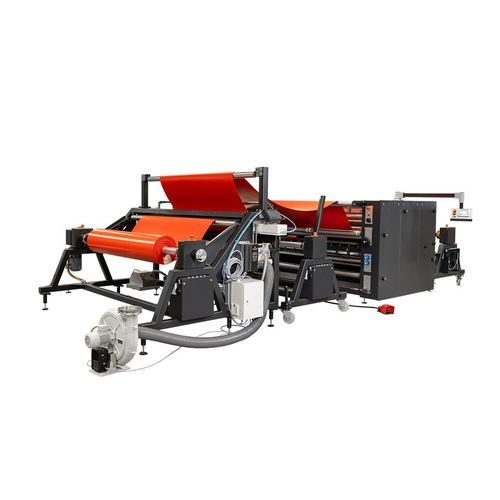

ロール状ラミネート マシン WSL

ロール・ツー・ロールロール・ツー・ロール産業用

Overview
The Crest WSL is a high-precision slitter rewinder and optional inline laminator engineered for tension-sensitive converting of flexible films, specialty foams and laminates. It integrates pneumatic circular slitting, loop-controlled center winding and an advanced inline lamination station to enable single-pass and dual-pass workflows while preventing material deformation and telescoping.

Key capabilities

• Pneumatic circular knives for accurate, burr-free slitting and fast, operator-friendly knife changeovers.
• Loop-controlled center winding for deformation-free winding and stable tension across full roll diameter.
• Optional inline Corona surface activation for improved adhesive anchoring.
• Dual-roller nip lamination system to prevent micro-air inclusions and ensure homogeneous composite quality.
• Modular configuration supporting single-pass and dual-pass lamination workflows on one heavy-duty platform.

Applications / Where it is used

• Deformation-free master roll converting for advanced foams, high-tack adhesive laminates and technical films.
• High-precision slitting for converters requiring ultra-clean edges without adhesive bleeding or material fraying.
• Multi-pass lamination and converting workflows (e.g., production of self-adhesive flexo plate carriers) combining foam activation and backing application in two passes.

Process flow (dual-pass example)

• PASS 1: Foam Activation & Adhesive Coating — unwinds specialty foam, applies inline Corona treatment to activate the surface, then laminates a high-tack adhesive under precise nip pressure for a durable bond.
• PASS 2: Plastic Backing Application — the laminated adhesive foam from Pass 1 is fed back in; the plastic backing is applied (Corona off) and pneumatic circular knives slit the final laminate to customer-specified widths.

Suitable materials

• Technical foam laminates (examples: ProBAK®, Softprint®, Cushion-Mount™)
• Flexographic backing and compressible foams
• Polyester (PET) and PVC plastic backing films
• High-tack self-adhesive laminates
• Protective films and release liners

Best suited for

• Converters of delicate, compressible foams requiring precise tension control to avoid structural deformation.
• Operations needing 100% bubble-free lamination with dual-roller post-pressing to eliminate micro-air inclusions.
• High-volume, heavy-duty production handling jumbo rolls with demanding center-winding requirements.
• Short-run flexibility with rapid, toolless changeovers between core sizes.

Why it performs

• Maximized yield and minimized scrap via pneumatic slitting and responsive loop-controlled tension.
• Zero-defect composite quality from stable center winding and dual-roller lamination.
• Heavy-duty industrial uptime with operator-friendly knife positioning and flexible shaft configurations.

Caractéristiques / spécifications techniques

• Model name: WSL
• Manufacturer / brand: Crest
• Pneumatic circular slitting (crush-cut) with rapid changeover
• Loop-controlled center winding for deformation-free winding
• Optional inline Corona surface activation unit
• Dual-roller nip lamination system to avoid micro-air inclusions
• Supports single-pass and dual-pass lamination workflows (integrated laminator optional)
• Adjustable working widths (example: up to 1650 mm and beyond, depending on configuration)
• Capable of handling jumbo master rolls up to ø1200 mm diameter and up to 500 kg via center winding
• Flexible shaft handling with quick changeovers for 3-inch and 6-inch cores
• Designed for heavy-duty production environments and high uptime
• Warranty example noted on page: 5-year warranty when a service agreement is in place
