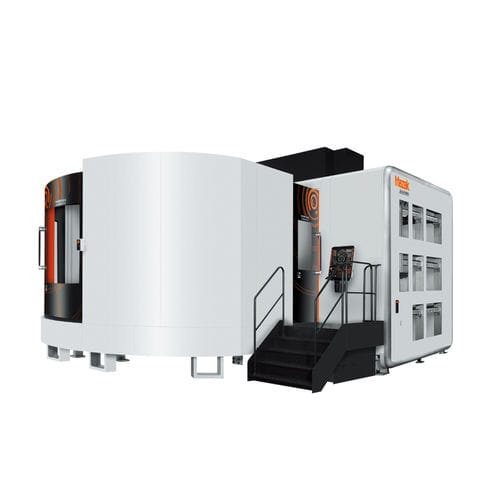

5軸マシニングセンタ VORTEX e-V

縦型ダブルコラムBT 50

1,875 mm, 2,315 mm
(73.82 in, 91.14 in)

1,250 mm, 1,600 mm
(49.21 in, 62.99 in)

1,345 mm
(52.95 in)

10,000 rpm, 15,000 rpm
(62,832 rad.min-1, 94,248 rad.min-1)

30 kW, 37 kW
(40.79 hp, 50.31 hp)

42,000 mm/min
(27.56 in/s)

42,000 mm/min
(27.56 in/s)

42,000 mm/min
(27.56 in/s)

2,700 kg, 4,000 kg, 5,000 kg, 7,000 kg
(5,952 lb, 8,818 lb, 11,023 lb, 15,432 lb)

30 kg
(66.1 lb)

45,000 kg, 46,700 kg, 49,500 kg, 58,000 kg
(99,208.02 lb, 102,955.88 lb, 109,128.82 lb, 127,868.11 lb)

6,187 mm, 6,970 mm, 8,010 mm
(243.6 in, 274.4 in, 315.4 in)

5,200 mm, 8,712 mm, 9,680 mm
(204.7 in, 343 in, 381.1 in)

4,400 mm, 4,535 mm
(173.2 in, 178.5 in)
