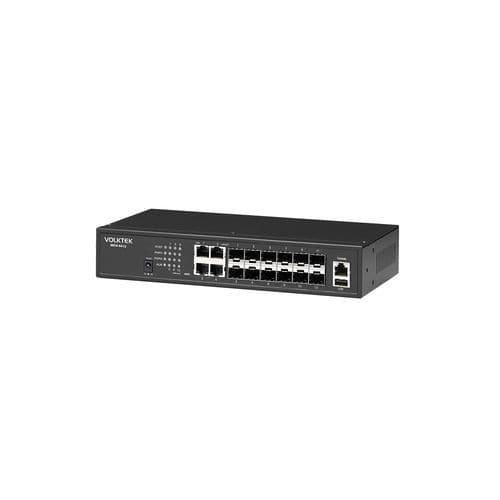

管理型イーサネットスイッチ MEN-6412

12 ポートラック上インライン

Product Features4 FX/GbE Combo RJ45/SFP, 4 x FX/GbE SFP, and 4 x SFP uplink ports for fast data communication1 console port (for command line interface)1 USB port (for firmware upgrades, configuration file storage, and log file downloads)Combines storm control and QoS for efficient network operationEasy-to-install front power outletOperating temperature range: -20°C~60°C (-4°F~140°F)Product OverviewThe MEN-6412 is a managed L2+ aggregation switch designed for FTTX applications, featuring robust 4-port multi-rate FX/GbE combo RJ45/SFP uplinks, 4-port FX/GbE SFP, and 4-port GbE SFP downlinks. It is designed to meet the requirements of Internet Service Providers (ISP), Multiple System Operators (MSO), and enterprise-class networks. The RJ45-type console port allows for quick identification and resolution of network issues. The USB port is designed for saving configuration files, system log files, and firmware upgrades, reducing network downtime and operational costs.The MEN-6412 provides stable long-distance fiber connections, supporting rural digitalization, simplifying maintenance, and enhancing safety and resilience. It offers a consistent user platform for centralized management and reduced management costs. The device also features anti-theft functions for enhanced physical security. With a wide operating temperature range of -20°C to 60°C (-4°F to 140°F), it operates stably in harsh environments, eliminating the need for air conditioning and contributing to reduced electricity costs.FunctionsSpace-saving designSecurity mechanisms such as ACL (Access Control List), DHCP snooping, ARP (Address Resolution Protocol), IEEE 802.1X, and port security for a stable and secure network environmentLast mile protection: Device Lock function locks the device to a specific network, greatly reducing the risk of reconfiguration on other networks if stolenEfficient network monitoring and management: SNMP v1/v2c/v3 and RMON enable real-time traffic analysis for reliable and secure network operationsRedundant ring for rapid network recovery: Supports STP, RSTP, MSTP, Xpress Ring, and ERPS protocols for enhanced reliability and business continuityEfficient traffic prioritization: QoS mechanisms allocate dedicated bandwidth for critical applications and communicationsSpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP)Interface: 4 x 100FX/GbE Combos, 4 x 100FX/GbE SFP Slots, 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB PortLED Panel: PWR1, PWR2, POST, ALM, 1000, LNK/ACTPower: DC Jack: 15V/4A AC Adapter; DC Terminal Block: 48V Dual Input; Battery Terminal Block: 12V Battery; AC Inlet: 100~240VAC, 50/60Hz (MEN-6412C)Power Consumption: System: 18W (max)Mechanical and Environment: Housing: Metal (IP30 Protection); Mounting: Desktop, Rack Mount (Optional); Operating Temperature: -20°C~60°C (-4°F~140°F), -20°C~50°C (-4°F~122°F) (For LVD Certification); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 1.25 kg (2.75 lb); Dimensions: 268 x 44 x 128 mm (10.6 x 1.7 x 5 in)Order InformationModelDescriptionMEN-6412Managed 4 x FX/GbE Combo RJ45/SFP & 4 x FX/GbE SFP & 4 x GbE SFP Switch with USB Support, w/ External Power AdapterMEN-6412CManaged 4 x FX/GbE Combo RJ45/SFP & 4 x FX/GbE SFP & 4 x GbE SFP Switch with USB Support, w/ AC Power Input (50°C)Key Features / Technical Specifications:Managed L2+ aggregation switch for FTTX applications4 x FX/GbE Combo RJ45/SFP uplinks, 4 x FX/GbE SFP, 4 x GbE SFP downlinksConsole and USB ports for management and maintenanceWide operating temperature: -20°C~60°CRobust metal housing (IP30)Multiple redundancy and security protocols supportedPower input options: DC, AC, batteryDimensions: 268 x 44 x 128 mm; Weight: 1.25 kg
