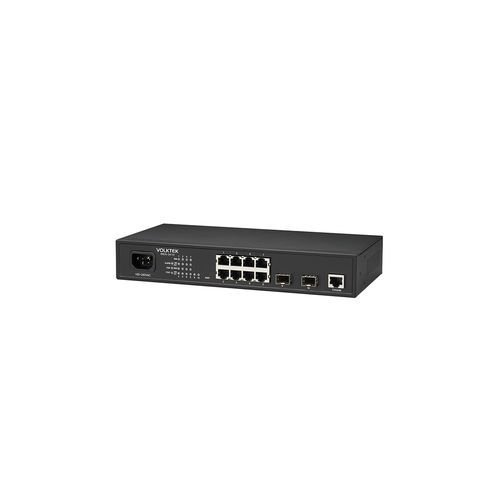

管理型イーサネットスイッチ MEN-3410 series

8 ポートラック組み立てオフィス用

Product Features8 x 10/100/1000 RJ45 downlink ports (fulfilling basic infrastructure needs for broadband office applications)2 x FX/GbE SFP uplink ports (for long-distance connections and cascading)1 console port (for command line interface)Classifies high-priority traffic via Service Quality (IEEE 802.1p) protocolFront power outlet design for easy installationOperating temperature range: 0°C~50°C (32°F~122°F)OverviewThe MEN-3410 is a managed switch equipped with 8 x 10/100/1000 RJ45 downlink ports and 2 x FX/GbE SFP uplink ports, designed for indoor broadband applications to meet basic network infrastructure needs. It is compatible with third-party devices and supports scalable topologies. Additionally, the MEN-3410 leverages QoS protocols to optimize bandwidth usage and supports triple-play services (TV, Internet, and telephone), ensuring each service receives the required bandwidth for low-latency, stable streaming. Management functions are accessible via Web GUI or command line, providing a user-friendly experience. The intuitive interface allows for easy configuration and monitoring. Parallel-connected emergency batteries ensure continued operation during sudden power outages. The fanless design prevents dust accumulation, enables silent operation, reduces noise interference, and minimizes maintenance needs. The operating temperature range of 0°C to 50°C (32°F to 122°F) makes it suitable for racks or cabinets in indoor network rooms.FunctionsNon-stop network with redundant power: In addition to AC and DC power, a battery backup option ensures uninterrupted system operation during power failures.Comprehensive security features: Equipped with defense mechanisms such as ACL (Access Control List), DHCP snooping, ARP, IEEE 802.1X, and port security for a stable and secure network.Efficient traffic prioritization: Utilizes QoS (Quality of Service) mechanisms to prioritize critical traffic and improve overall network performance.Efficient network monitoring and management: Supports SNMP v1/v2c/v3 and RMON for real-time traffic analysis and remote monitoring, enabling quick network status assessment.Rapid network recovery in ring topology: Capable of switching to redundant links within milliseconds in case of link failure, minimizing downtime and enhancing system reliability.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 8 x 10/100/1000BASE-T RJ45 Ports, 2 x 100FX/GbE SFP Slots, 1 x RJ45 Console PortLED Panel: PWR, ALM, POST, 1000, LNK/ACTPower: Primary inputs: AC 100~240VAC 50~60Hz, 15V DC Power Adapter; Redundant inputs: 12V Battery; Power Consumption: 10W (System)Mechanical and Environment: Housing: Metal (IP30 Protection); Mounting: Rack Mount; Operating Temperature: 0°C~50°C (32°F~122°F); Storage Temperature: -20°C~70°C (-4°F~158°F); Operating Humidity: 10 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 1.17 kg (2.58 lb); Dimension (WxHxD): 268 x 44 x 128 mm (10.6 x 1.7 x 5 in)Order InformationModelDescriptionMEN-3410Managed 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC PowerMEN-3410BManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power, Battery Charge Function IncludedMEN-3410DManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal DC PowerMEN-3410ABManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ External AC Power Adapter, Battery Charge Function IncludedMEN-3510Managed 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC PowerMEN-3510BManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power, Battery Charge Function IncludedTechnical Specifications / Features:8 x 10/100/1000 RJ45 downlink ports2 x FX/GbE SFP uplink ports1 x RJ45 console portQoS (IEEE 802.1p)Front power outlet designOperating temperature: 0°C~50°CRedundant AC/DC power and battery backupFanless designSNMP supportMetal housing (IP30)Rack mountableWeight: 1.17 kgDimensions: 268 x 44 x 128 mm
