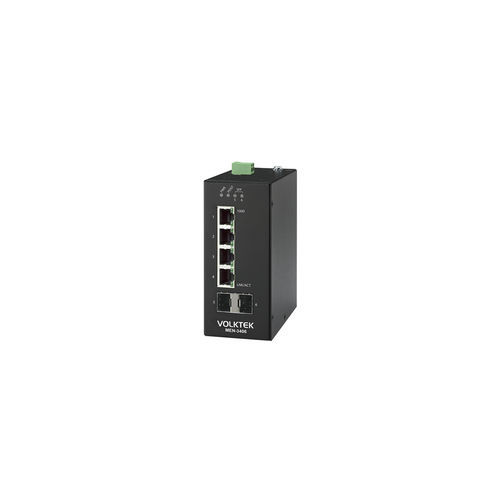

管理型イーサネットスイッチ MEN-3406

4 ポートLANDINレール

Product Features4 x 10/100/1000 RJ45 ports (fulfilling basic infrastructure needs for broadband office applications)2 x FX/GbE SFP uplink ports (for long-distance connections and cascading)Storm control and QoS prioritize traffic to support efficient operationsIP30 metal housingOperating temperature range: 0°C~60°C (32°F~140°F)Product OverviewThe MEN-3406 is an excellent choice for strengthening office network infrastructure, especially as it is equipped with four 10/100/1000 RJ45 ports and two FX/GbE SFP uplink ports, providing flexible connection options. Furthermore, the MEN-3406 utilizes QoS protocols to optimize bandwidth usage and supports triple-play services for TV, internet, and telephone. This ensures each service receives the required bandwidth, enabling low-latency and stable streaming.The management functions of the MEN-3406 are easily accessible and configurable via Web GUI or command line. Additionally, the parallel connection of an emergency battery ensures continued operation during sudden power outages. The fanless design prevents dust accumulation inside the device, allows for quiet operation, reduces noise interference, and minimizes the need for ongoing maintenance. Power is supplied via terminal block, and the operating temperature range is 0°C to 60°C (32°F to 140°F), making it suitable for installation in indoor network room racks or cabinets.FunctionsExcellent network performance: Utilizing storm control and traffic monitoring, unnecessary incoming traffic is restricted based on defined parameters, ensuring network bandwidth.Robust electrical and electromagnetic protection: Designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.Redundant power system: Combination of DC power and optional battery backup enables stable operation during power failures.Efficient traffic prioritization: The MEN-3406's QoS mechanism prioritizes traffic for specific applications, ensuring efficient network operation.Efficient network monitoring and management: Utilizing SNMP (Simple Network Management Protocol) v1/v2c/v3 and RMON (Remote Monitoring) for real-time traffic analysis, remote monitoring, and management, enhancing operational reliability.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (RJ45), 2 x 100FX/GbE SFP Slots; LED Panel: PWR, POST, 1000, LNK/ACT, SFPPower: Input Voltage: MEN-3406: 12V DC/1A Power Adapter; MEN-3406B: 15V DC/2A (Battery charge); Redundant inputs: 12V Battery (only for battery charge version); Connection: DC Jack; Power Consumption: 6W (System)Mechanical and Environment: Housing: Metal (IP30 Protection); Mounting: DIN-Rail; Operating Temperature: 0°C~60°C (32°F~140°F); Storage Temperature: -20°C~70°C (-4°F~158°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 529 g (1.17 lb); Dimensions (WxHxD): 50 x 115.8 x 99.6 mm (1.97 x 4.56 x 3.92 in)Order InformationModelDescriptionMEN-3406Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ External AC Power AdapterMEN-3406BManaged 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ External AC Power Adapter, Battery Charge Function Included (60°C)Operating temperature: 0°C-60°CDIN Rail mountingFanless designPower backupQoS supportSurge protectionSNMP supportROHS, CE, FC certifiedTechnical Specifications:4 x 10/100/1000 RJ45 ports2 x FX/GbE SFP uplink portsIP30 metal housingOperating temperature: 0°C~60°CFanless designRedundant power systemSNMP v1/v2c/v3, RMON supportDimensions: 50 x 115.8 x 99.6 mmWeight: 529 g
