遠心ポンプ Yonos ECO...-BMS series

お湯用冷却水用水

Produit

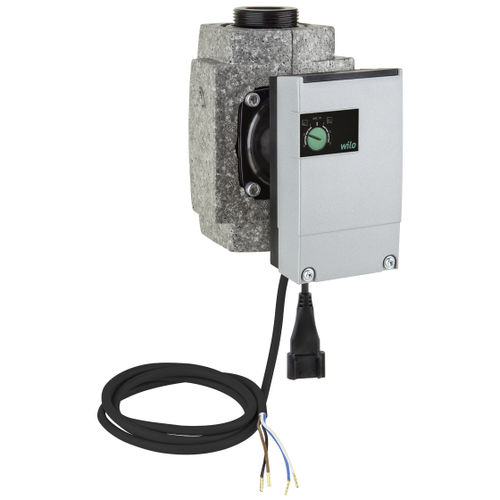

Yonos ECO...-BMS (グランドレス循環ポンプ)

Principales caractéristiques

• Potential-free collective fault signal contact (SSM) for connection to external monitoring units (e.g. building automation) and control input 0-10 V
• Control cable (4-wire, 1.5 m) for SSM connection and 0-10 V
• Wilo-Connector pour connexion électrique rapide
• Thermal insulation as standard (isolation thermique fournie en standard pour applications de chauffage)
• Pump housing with cataphoretic (KTL) coating protects against corrosion due to condensation formation

Tableau des variantes
Produit | Pump connection | Pump connection (alternative designation) | EEI* | Port-to-port length L0 | Maximum operating pressure PN | Mains connection | Gross weight approx. m | Pieces per pallet | Article number
Yonos ECO 25/1-5 BMS PN 10 | G 1½ | RP 1, DN 25 | ≤ 0.20 | 180 mm | 10 bar | 1~230 V, 50/60 Hz | 3 kg | 96 | 2150700
Yonos ECO 30/1-5 BMS PN 10 | G 2 | RP 1 1/2, DN 30 | ≤ 0.20 | 180 mm | 10 bar | 1~230 V, 50/60 Hz | 3 kg | 96 | 2150701

Série / description
Glandless circulator with threaded connection, EC motor with automatic power adjustment.

Applications
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Modes de fonctionnement

• Control mode (n = constant)
• Δp-c for constant differential pressure
• Δp-v for variable differential pressure

Fonctions manuelles

• Setting the operating mode
• Differential pressure setpoint setting

Fonctions automatiques

• Infinitely variable power adjustment according to the operating mode
• Deblocking function
• Soft start
• Full motor protection with integrated trip electronics

Fonctions de contrôle externes

• "Analogue In 0 - 10 V" control input (remote speed adjustment)

Signaux et affichages

• Collective fault signal (potential-free NC contact)

Equipement / fournis

• Wrench attachment point on pump body
• Quick electrical connection with Wilo-Connector
• Control cable (4-wire, 1.5 m) for SSM connection and 0-10 V
• Blocking-current proof motor
• Thermal insulation as standard for heating applications

Type key (exemple)
Example: Wilo-Yonos ECO 30/1-5-BMS → Yonos ECO = high-efficiency pump (screw-end pump); 30/ = nominal connection diameter; 1-5 = nominal delivery head range [m]; BMS = application for building automation.

Portée de livraison

• Pump
• Thermal insulation
• Wilo-Connector
• Control cable
• Gaskets
• Installation and operating instructions

Accessoires

• Screwed connections
• Adapter fittings
• Wilo-Connector with 2 m connection cable and shockproof plug
• Angle plug with 2 m connection cable
