遠心ポンプ Helix V series

水電動自吸式

Product overview

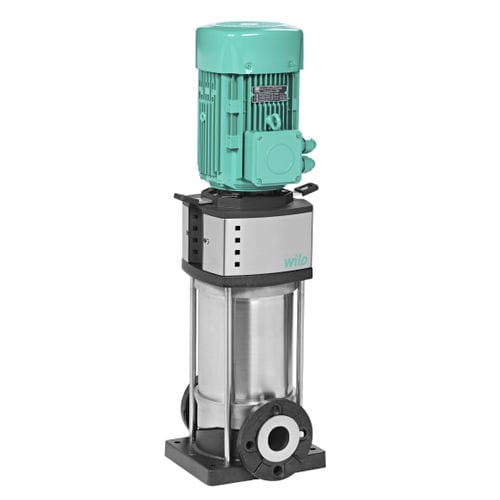

The Wilo-Helix V is a highly efficient, vertical multistage in-line pump designed for high efficiency and long service life. It features IE3/IE4 motors and corrosion-resistant hydraulics. The pump is configurable and suitable for applications ranging from water supply and pressure boosting to cooling technology and demanding industrial uses. It can be approved for drinking water when EPDM gaskets are selected and is designed for easy maintenance.

Key features

• IE3/IE4 fixed-speed motor ensures high efficiency
• All wetted components corrosion-resistant, made of laser-welded or cast stainless steel (AISI 304 / AISI 316L)
• Versatile gasket types and pump connections (oval flanges, round flanges to ISO, Victaulic or Triclamp connection) configurable for specific applications
• Maintenance-friendly design: convenient access to pump components, bearing integrated in the lantern, spacer coupling and cartridge mechanical seal options
• Suitable for ambient temperatures up to +50 °C (standard, without power dissipation)
• Drinking water approval possible if EPDM rubber is selected for the gasket

Applications

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Fire-fighting systems
• Washing systems
• Irrigation

Design
Non-self-priming, high-efficiency multistage centrifugal pump in vertical in-line design with in-line connections. Corrosion-resistant impellers, guide vanes and stage housings. Available in multiple material combinations for different media and operating conditions.

Type key (representation)
Example: Helix V 2202/2-1/16/E/KS/400-50
Helix V = Vertical high-pressure multistage centrifugal pump in in-line design
22 = Flow rate in m3/h
02 = Number of impellers
2 = Number of trimmed impellers (optionally)
1 = Pump material combination (1 = Pump housing 1.4301 (AISI 304), hydraulics 1.4307 (AISI 304L); 2 = Pump housing 1.4409 (AISI 316L), hydraulics 1.4404 (AISI 316L))
16 / 25 / 30 = Maximum operating pressure in bar and corresponding flange variants (e.g. 16 = PN16 oval flanges for small flows; 25 = PN25; 30 = PN30 / PN40 flange options)
E / V = Gasket type (E = EPDM, V = FKM)
K = Cartridge mechanical seal type identifier
S = Coupling guard aligned with suction and discharge ports
400 = Connection voltage in V

Materials (examples and combinations)

• Helix V 2, 4, 6, 10, 16 – Material combination 1: Impellers/stage housings/guide vanes 1.4307 (AISI 304L), pump housing 1.4301 (AISI 304). Baseplate and lantern: cataphoretic-coated EN-GJL 250. Shaft: 1.4301 or 1.4462 (depending on version). Sleeve under mechanical seal: 1.4404 (AISI 316L). O-ring: EPDM (FKM on request). Jacket pipe: 1.4301.
• Material combination 2: Impellers/stage housings/guide vanes 1.4404 (AISI 316L), pump housing 1.4404 (AISI 316L), shaft 1.4404 or 1.4462, sleeve 1.4404, O-ring FKM (EPDM on request).
• Helix V 22, 36, 52, 80, 105 – variants with loose flanges, cast stainless housings and alternative shaft materials (detailed material combos per size/series available).

Construction / Options

• Various mechanical seal types for application adaptation (porous silicon carbide Q7Q7 for water-glycol cooling applications, tungsten carbide/silicon carbide UQ for pure water applications with low conductivity)
• Victaulic or Tri-clamp connections available for certain sizes
• Silicone-free versions, ATEX versions available on request
• Motor customisations: overpowered motors, IE4 motors, PTC sensors, reinforced external corrosion protection, canopy, anti-condensation heating, special RAL colours, etc.

Delivery scope

• Helix V high-pressure multistage centrifugal pump
• Installation and operating instructions
• For Helix V 2 – 16 (PN16 with oval flanges): stainless steel counter flanges with corresponding screws, nuts and gaskets

caractéristiques / spécifications techniques

• Electrical connection: 3~400 V ±10 %, 50 Hz (other mains options available)
• Fluid temperature range: With EPDM: -30 … 120 °C (130 °C possible with cartridge and below 16 bar); With FKM: -15 … 90 °C
• Max. operating pressure: 16 / 25 / 30 bar (depending on version)
• IP rating: IP55
• Max. ambient temperature: +50 °C (extended ranges on request)
• Available flange and connection variants: PN16 (oval flanges for ≤ 16 m3/h), PN25 / PN40 with compatible round flanges per ISO standards; Victaulic or Tri-clamp on request for certain sizes
• Typical impeller / stage material: stainless steel AISI 304L or AISI 316L depending on material combination
