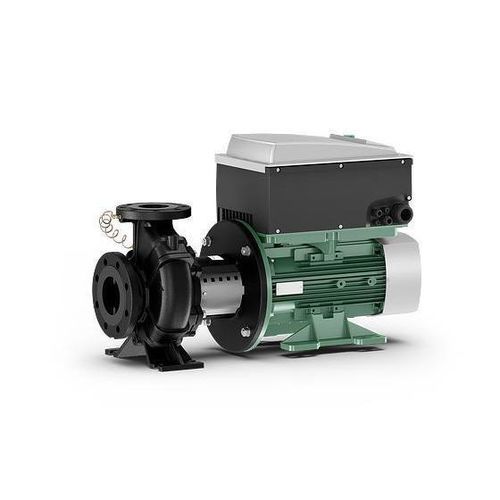

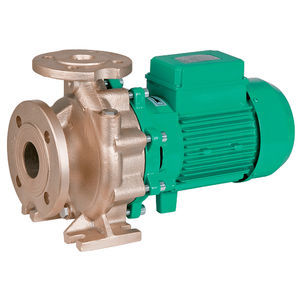

遠心ポンプ Stratos GIGA B series

冷却水用グリコール水手動

Résumé
The Wilo-Stratos GIGA B is the ideal high-efficiency pump for use in heating, air conditioning and cooling applications in buildings where large volumes of water have to be pumped to great delivery heads.

Principaux avantages

• Innovative, high-efficiency pump for maximum overall efficiency with principal dimensions in accordance with EN 733
• High-efficiency EC motor with efficiency class IE5 in accordance with IEC 60034-30-2
• Integrated pump support feet and optional supporting block allow for easy installation
• Optional interfaces for bus communication using plug-in IF-Modules

Design
High-efficiency close-coupled end suction pump with IE5 motor and electronic power adjustment in glanded pump design. Version as single-stage low-pressure centrifugal pump with flange connection and mechanical seal.

Application
The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Équipements / Fonctions

• Operating modes
  • Δp-c for constant differential pressure
  • Δp-v for variable differential pressure
  • PID-Control
  • Constant speed (n = constant)
• Manual operation level
  • Green button and display
• Manual functions
  • Differential pressure setpoint setting
  • Setting the speed (manual control mode)
  • Setting the operating mode
  • Setting the pump ON/OFF
  • Configuration of all operating parameters
  • Fault acknowledgement
• External control functions
  • 1x “Overriding Off” control input
  • 1x “External pump alternation” control input (effective only in twin-head pump operation)
  • 1x Analogue input 0–10 V, 2–10 V, 0–20 mA, 4–20 mA for constant speed (DDC) and remote setpoint adjustment
  • 1x Analogue input 0–10 V, 2–10 V, 0–20 mA, 4–20 mA for actual value signal from pressure sensor
• Signal and display functions
  • Collective fault signal SSM
  • Collective run signal SBM
• Data exchange
  • Infrared interface for wireless data exchange with IR-Monitor/IR-Stick
  • Plug-in position for Wilo IF-Modules (Modbus, BACnet, CAN, PLR, LON) for connection to building automation
• Safety functions
  • Full motor protection with integrated trip electronics
  • Access disable
• Dual-pump management (2 x single pump, Y-piece application only)
  • Main/standby operation (automatic fault-actuated switchover)
  • Pump alternation main/standby operation after 24 hours
  • Parallel operation

Type key (exemple)
Wilo-Stratos GIGA B 40/5-64/15-xx
Stratos GIGA = High-efficiency pump
B = Close-coupled design
40 = Nominal diameter DN of the flange connection (discharge side) [mm]
5-64 = selectable delivery head range (1 = lowest selectable head, 51 = highest selectable head in example)
15 = Rated power P2 in [kW]
-xx = Version suffix (e.g. R1 = version without differential pressure sensor)

Matériaux

• Pump housing and lantern: EN-GJL-250
• Impeller: EN-GJL-200 (special versions: bronze CuSn 10 or stainless steel 1.4408 depending on type)
• Shaft: 1.4122 or 1.4057
• Mechanical seal: AQEGG; other mechanical seals on request

Plage de température et pression

• Permitted temperature range of the fluid: -20 °C to +140 °C
• Mechanical seal for pumping water up to Tmax = +140 °C. Notes about glycol admixture and special mechanical seal requirements for higher glycol contents and temperatures are applicable.
• Max. operating pressure: 16 bar up to +120 °C, 13 bar up to +140 °C

Réseau électrique et protection

• Mains connection options: 3~440 V ±10%, 50/60 Hz; 3~400 V ±10%, 50/60 Hz; 3~380 V -5% +10%, 50/60 Hz
• Motor efficiency class: IE5
• IP rating: IP55
• Compliance with EMC (EN 61800-3:2018)

Livraison

• Pompe
• Installation and operating instructions

Options

• …-L1 variant with bronze impeller (additional charge)
• …-L4 variant with stainless steel impeller (additional charge)
• Variant …-R1 without differential pressure sensor
• …-S1 variant with special mechanical seal

Accessoires

• Mounting bracket with fixation material for installation on a base
• Installation aid for mechanical seal
• IR-Stick
• IF module PLR for connecting to PLR/interface converter
• IF module LON for connection to the LONWORKS network
• IF module BACnet, IF module Modbus, IF module CAN
• Control systems VR-HVAC, CCe-HVAC, SCe-HVAC
• Differential pressure sensor (DDG)

Documents disponibles (exemples)
Installation and operating instructions, data sheets and certifications are available (product-specific manuals, group statements, UKCA declarations, datasheets).

caractéristiques / spécifications techniques

• Série: Stratos GIGA B
• Type: close-coupled end-suction single-stage centrifugal pump
• Motor: EC motor, efficiency class IE5
• Fluid temperature range: -20 °C to +140 °C
• Max. operating pressure: 16 bar (up to +120 °C), 13 bar (up to +140 °C)
• Ingress protection: IP55
• Mains: 3~440 V / 3~400 V / 3~380 V variants (see techn. data)
• Mechanical seal: AQEGG (other seals on request)
• Materials: housing EN-GJL-250, impeller EN-GJL-200 (bronze/stainless variants available), shaft 1.4122 or 1.4057
