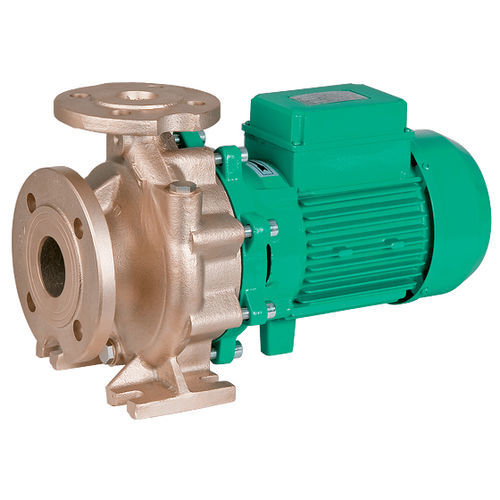

インペラポンプ BM series

水電動モーター付き自吸式

製品名
BM - モノブロックポンプ

特長

• Compact close-coupled design with directly flanged three-phase current motor and one-piece motor pump shaft
• Can be used in many applications due to material made of cast stainless steel (BM-S) and cast bronze (BM-B)
• Meets user requirements due to performance and main dimensions in accordance with EN 733 (DIN for long-coupled end suction pumps)
• Standard-equipped feet on pump housing and motor for installation on a base

アプリケーション

• For pumping heating water (in accordance with VDI 2035)
• Water-glycol mixtures
• Cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems

製品バリエーション（抜粋）
結果数: 280

ヘッダー: Product description | Number of poles | MEI | IE | Nominal flange diameter | Mechanical seal | Rated power P2 | Gross weight | Article number
BM-B 32/100-0,75/2 | 2 | 0.4 | IE3 | DN 32 | Q1Q1VGG | 0.75 kW | 31.5 kg | 2164370
BM-B 32/120-1,1/2 | 2 | 0.4 | IE3 | DN 32 | Q1Q1VGG | 1.1 kW | 33.5 kg | 2164371
BM-B 32/130-1,5/2 | 2 | 0.4 | IE3 | DN 32 | Q1Q1VGG | 1.5 kW | 35.5 kg | 2164372
BM-B 32/140-2,2/2 | 2 | 0.4 | IE3 | DN 32 | Q1Q1VGG | 2.2 kW | 38.5 kg | 2164373
BM-B 32/150-2,2/2 | 2 | 0.4 | IE3 | DN 32 | Q1Q1VGG | 2.2 kW | 40.5 kg | 2164374
（上記は一覧の一部の抜粋。製品バリエーション多数あり。）

材料

• Pump housing BM-B: Bronze CuSn10
• Pump housing BM-S: Cast stainless steel 1.4408
• Impeller BM-B: Bronze CuSn10
• Impeller BM-S: Cast stainless steel 1.4408
• Shaft: 1.4362
• Mechanical seal: Q1Q1VGG

構造

• Single-stage glanded centrifugal pump in compact close-coupled design
• Directly flanged three-phase current motor and one-piece motor pump shaft
• Mechanical seal
• Feet on pump housing and motor

納品範囲

• Pump
• Installation and operating instructions

オプション

• Version ...-K3 with PTC thermistor sensor (for a surcharge)
• Other mechanical seals on request

caractéristiques / spécifications techniques

• Minimum efficiency index (MEI) ≥ 0.4
• Permissible temperature range: -10 °C to +90 °C
• Mains connection: 3~400 V, 50 Hz
• IP rating: IP55
• Nominal diameter: DN 32 to DN 125
• Maximum operating pressure: 10 bar
• Mechanical seal type used (example): Q1Q1VGG
