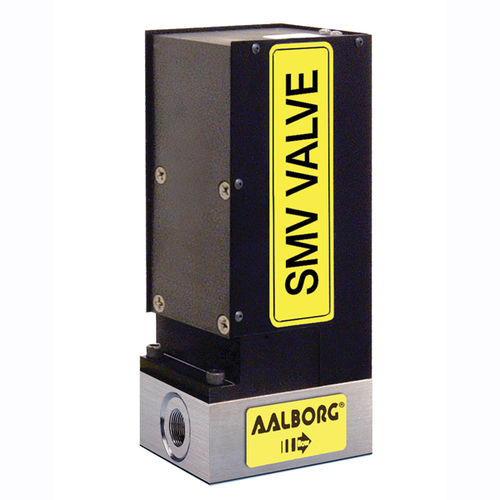

Valve with stepper motor SMV

valve with stepper motor
valve with stepper motor
valve with stepper motor
valve with stepper motor
Add to favorites
Compare this product


for gas
stainless steel, aluminum
motor, for precision materials handling, high-precision
Number of channels
Other characteristics
electromagnetic, with stepper motor

Min.: 0 bar (0 psi)

Max.: 34.5 bar

Flow rate

28 l/min (7 us gal/min)


SMV stepping motor valve for high flow regulation of gases or liquids Design Features * high precision two-way metering valves in aluminum * unparalleled precision and resolution in controlling * operate continuously without overheating; eliminates SMV stepping motor valve A line of electronic two-way metering valves is presented. High precision linear stepping motors drive the valve spindle. The resolution of the stepping motor driven needles is 0.0005"/step. Low differential pressure valves, may be operated continuously (100% duty cycle).Valves stay in position as when de-energized. Advantages over solenoid operated valves include cool operations, i.e. there are no control operating problems due to coils heating up, extremely fine resolution, very low differential pressures and high operating pressures. Valves are controllable by TTL compatible logic level and analog 0 to 5 Vdc signals. Operation When the "DIRECTION" is set LOW (GND) the valve spindle travels downward (closes), when it is set HIGH, the valve spindle moves upward (opens). The "SPEED" voltage on pin 4 determines how quickly the valve opens or closes. The signal amplitude for the "SPEED" control signal must remain within the limits of 0 to +5.0 VDC. It may be necessary to override "DIRECTION" and "SPEED" signals with the preset (2.75 Vdc) speed control signal. This can be accomplished with valve CLOSE and PURGE control signals (open collector NPN compatible). In order to CLOSE the valve, pin 3 on the 9-pin "D" -connector has to be connected to GND (pin 2). A GREEN light on the top of the valve will indicate a CLOSEd valve condition.
