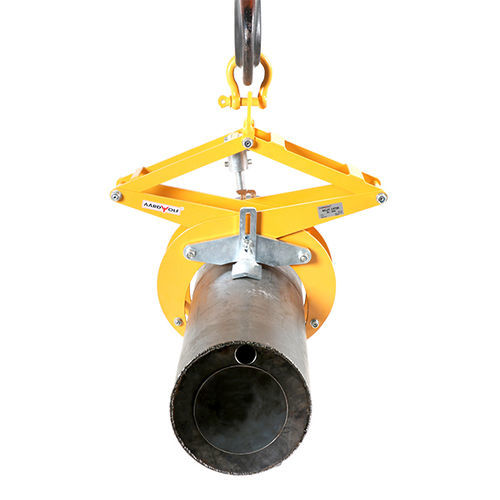

Tube lifting clamp RBL305

verticalmechanicalautomatic

General
The Round Bar Lifter RBL305 is a mechanical clamp designed to lift and position steel pipes and tubes with a grip diameter range of 200 - 305 mm. It operates as a fully automatic mechanical clamp with an auto-locking latch and requires no electrical or hydraulic supply. The unit is intended for factory and construction site use and can be attached to overhead cranes or forklift booms for pick-and-place operations.

Features

• Handles long steel pipes and tubes; suitable for pipe assembly and construction tasks.
• Mechanical auto-locking latch; fully automatic clamping action.
• No electrical or hydraulic power required; compatible with overhead cranes and forklift booms.
• Constructed from durable steel.

Specifications
Metric — Imperial
Grip diameter range: 200 - 305 mm — 8" - 12"
Working load limit (WLL): 320 kg — 706 lb
Net weight: 26 kg — 57 lb
Gross weight: 29 kg — 64 lb
Packaging dimensions: L 740 x W 245 x H 580 mm — 29.1" x 9.6" x 22.8"

Technical details

• Model / Product code: RBL305
• Grip diameter range: 200 - 305 mm (8" - 12")
• Working load limit (WLL): 320 kg (706 lb)
• Net weight: 26 kg (57 lb)
• Gross weight: 29 kg (64 lb)
• Packaging dimensions: 740 x 245 x 580 mm (29.1" x 9.6" x 22.8")
• Material: durable steel
• Operation: fully mechanical clamp with auto-locking latch; no electrical or hydraulic supply required
• Compatibility: designed for use with overhead cranes or forklift booms for pick-and-place handling
