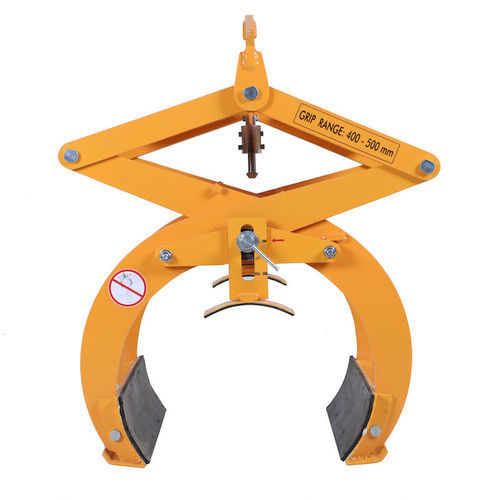

Concrete pipe lifting clamp ACPL750

verticalmechanicalautomatic

Overview
Fast, efficient and fully automatic, the Aardwolf mechanical concrete pipe lifter is designed to lift, transport and position concrete pipes safely without additional hydraulics. Its narrow profile enables installation in confined trenches.

Key features

• Mechanical operation with lever — no external hydraulics required.
• Automatic lock and unlock of the load for secure handling.
• Vulcanized rubber pads to protect pipe surfaces and ensure grip.
• Durable powder-coated finish for long service life in construction environments.

Operation & applications
The device allows a single operator to grab, lift, move and place concrete pipes within the specified grip range. Suitable for on-site pipe laying, trench installation and precast handling where access is limited.

Specifications

• Product code: ACPL750
• Grip range: 400–500 mm (15.7"–19.7")
• Working load limit (WLL): 750 kg (1653 lb)
• Net weight: 150 kg (331 lb)
• Gross weight: 162 kg (357 lb)
• Packaging dimensions: 950 x 830 x 980 mm (37.4" x 32.7" x 38.6")
• Pads: vulcanized rubber
• Finish: powder-coated
