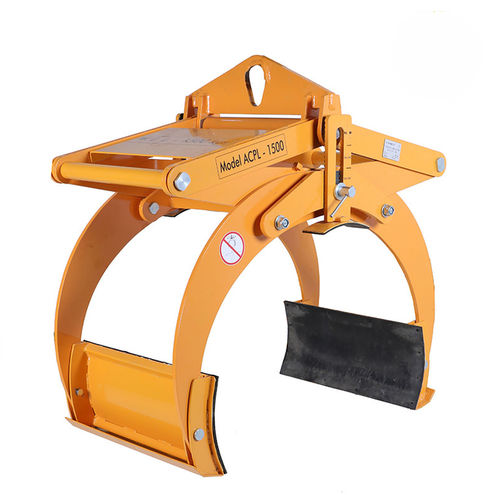

Concrete pipe lifting clamp ACPL1500

verticalmechanicalautomatic

General
Fast, efficient and fully automatic, the Aardwolf mechanical concrete pipe lifter is designed to safely grab, lift and place concrete pipes across varied diameters. The unit operates without additional hydraulics and enables a single operator to handle pipes. Its narrow profile facilitates installation in confined trenches.

Features

• Automatic lock/unlock of the load
• Vulcanized rubber contact pads
• Durable powder-coated finish

Specifications
Metric / Imperial
Grip range: 500 - 750 mm | 19.7 in - 29.5 in
Working load limit (WLL): 1500 kg | 3307 lb
Net weight: 226 kg | 498 lb
Gross weight: 240 kg | 529 lb
Packaging dimensions: L 1175 x W 640 x H 1210 mm | 46.3 in x 25.2 in x 47.6 in

Technical specifications

• Brand: Aardwolf
• Model / Reference: ACPL1500
• Grip range: 500 - 750 mm (19.7 in - 29.5 in)
• Working load limit (WLL): 1500 kg (3307 lb)
• Net weight: 226 kg (498 lb)
• Gross weight: 240 kg (529 lb)
• Packaging dimensions: 1175 x 640 x 1210 mm (46.3 in x 25.2 in x 47.6 in)
• Operation: automatic lock/unlock; no additional hydraulics required
• Design: narrow profile for installation in tight trenches
