Concrete pipe lifting clamp PHA4000

verticalmechanicalautomatic

General

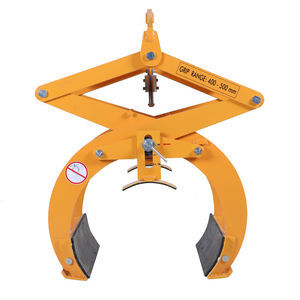

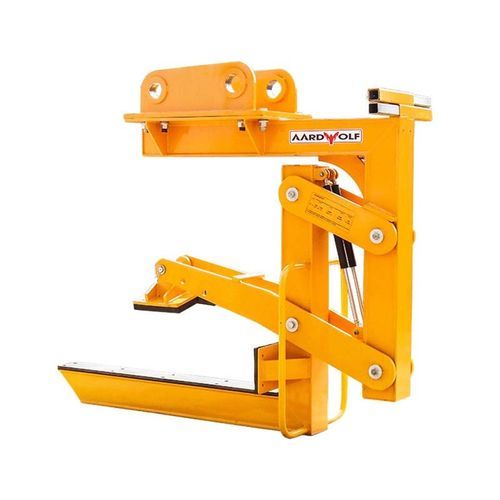

The Pipe Handling Attachment PHA4000 is an automatic lifting accessory designed to handle, lower and place concrete pipes safely and efficiently without external hydraulic power, slings or chains. Its narrow profile reduces required clearance and streamlines trench installation operations.

Applications
For lifting, lowering and positioning concrete pipes with outer diameters from 300 to 1200 mm. Suitable for trench installations, on-site lowering, pipeline construction and confined-space operations where precise placement is required.

Operation
The mechanical clamping mechanism secures the pipe to prevent slippage and enables accurate placement. The unit auto-locks and auto-unlocks under load so the operator does not need to set the pipe down during handling, reducing cycle time and risk of damage.

Features

• Automatic locking/unlocking under load
• Durable powder-coated finish
• No external hydraulic supply, slings or chains required

Specifications
Metric / Imperial
Grip range: 300-1200 mm / 12" - 47"
Pipe length: 2500 mm / 98.4"
Working load limit: 4000 kg / 8818 lb
Net weight: 760 kg / 1675 lb
Gross weight: 920 kg / 2028 lb
Packaging dimensions: L.2000 x W.830 x H.2200 mm / 78.7" x 32.7" x 86.6"

Technical specifications

• Product code: PHA4000
• Grip range: 300-1200 mm (12" - 47")
• Pipe length: 2500 mm (98.4")
• Working load limit (WLL): 4000 kg (8818 lb)
• Net weight: 760 kg (1675 lb)
• Gross weight: 920 kg (2028 lb)
• Packaging dimensions: 2000 x 830 x 2200 mm (78.7 x 32.7 x 86.6")
• Auto locking/unlocking mechanism for loads
• Narrow profile for confined-trench installation
