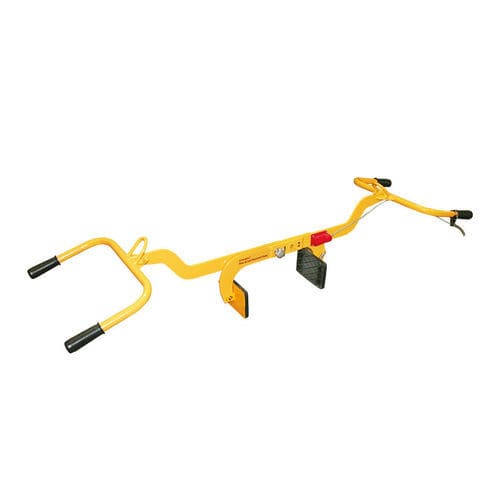

Mechanical curbstone laying clamp SCC04

General
This two-person stone and curb placement clamp is designed for the handling and installation of concrete or natural stone curbs and blocks. Intended to ease positioning and reduce operator fatigue during repetitive installation tasks.

Specifications
Metric | Imperial:
Grip range: 100 - 500 mm — 4" - 19.7"
Working load limit (WLL): 200 kg — 441 lb
Net weight: 16.9 kg — 37.3 lb
Gross weight: 17 kg — 37.5 lb
Packaging dimensions: L 1200 x W 540 x H 330 mm — 47.2" x 21.2" x 13"

Options
Chain and hooks are available separately as accessories.

Technical features

• Product code: SCC04
• Model: Stone & Curb Placement Clamp
• Grip range: 100 - 500 mm (4" - 19.7")
• Working load limit (WLL): 200 kg (441 lb)
• Net weight: 16.9 kg (37.3 lb)
• Gross weight: 17 kg (37.5 lb)
• Packaging dimensions: 1200 x 540 x 330 mm (47.2 x 21.2 x 13")
• Application: installation and positioning of concrete or stone curbs and blocks
• Operation: manual handling by two operators
• Accessories: chain and hooks sold separately
