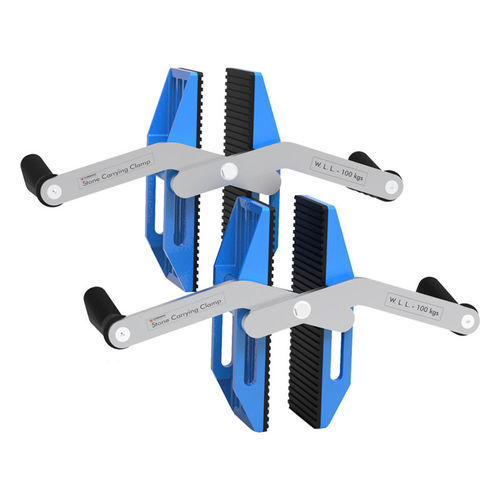

Stone lifting clamp SCC03

sheetnon-markingmanual

General
The SCC03 carry clamp for sheet material is designed to be used in pairs to lift and carry panels (stone, marble, granite, or other sheet materials) while maintaining a comfortable posture. The clamp harnesses the weight of the sheet to generate the clamping force. Jaws are lined with vulcanized rubber to protect the surface from damage.

Notes

• Sold in pair
• MOQ: 72

Specifications
Metric | Imperial
Grip range: 0 - 54 mm | 0 - 2.1"
Working load limit (WLL): 200 kg | 441 lb
Net weight (per clamp): 6.6 kg | 14.6 lb
Gross weight (pair, packaged): 7 kg | 15.4 lb
Packaging dimensions: L.480xW.160xH.300 mm | 18.9"x6.3"x11.8"

Technical characteristics

• Product code: SCC03
• Use: to be used in pairs for lifting and carrying panels and sheet materials
• Mechanism: clamping force generated by the weight of the material
• Surface protection: jaws with vulcanized rubber lining to prevent surface damage
• Grip range: 0 - 54 mm (0 - 2.1")
• Working load limit (WLL): 200 kg (441 lb)
• Net weight (per clamp): 6.6 kg (14.6 lb)
• Gross weight (pair, packaged): 7 kg (15.4 lb)
• Packaging dimensions: 480 x 160 x 300 mm (18.9" x 6.3" x 11.8")
• Sold in pair
• MOQ: 72
