Mechanical curbstone laying clamp ASKC200

General description of the Stone Kerb Clamp

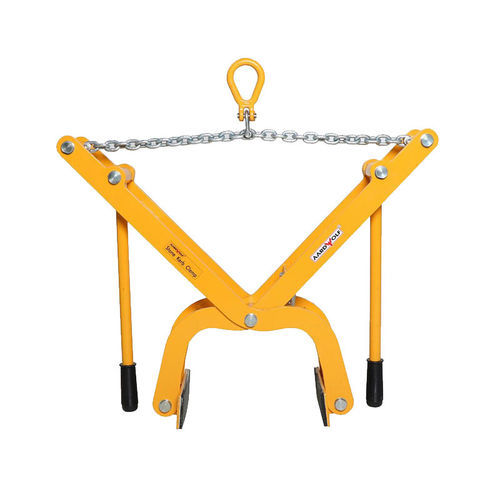

The Aardwolf Stone Kerb Clamp (ASKC200) is a two-person block clamp for lifting and handling curb stones, concrete and granite kerbs used in road construction and infrastructure projects. It features an adjustable grip range of 0–260 mm and a centre chain attachment allowing manual operation or machine-assisted lifting.

Key features

• Adjustable grip width: 0–260 mm
• Hand-operated actuator for controlled gripping and release
• Secure handling: load remains held until set down
• Machine-compatible: centre chain for hoists or cranes
• Tilting elastomer-coated pads for improved contact and reduced slippage
• Powder-coated frame for corrosion resistance

Specifications
Metric — Imperial
Grip range: 0 - 260 mm — 0 - 10.2 in
Working load limit: 200 kg — 441 lbs
Net weight: 23 kg — 51 lbs
Gross weight: 24 kg — 53 lbs
Packaging dimensions: L.860 W.390 H.210 mm — 33.9 in × 15.4 in × 8.3 in

Technical characteristics

• Model: ASKC200
• Grip range: 0 - 260 mm
• Working load limit (WLL): 200 kg
• Net weight: 23 kg
• Gross weight: 24 kg
• Packaging dimensions: 860 x 390 x 210 mm
• Actuation: Hand-operated actuator with centre chain for machine integration
• Gripping pads: Elastomer-coated, tilting pads
• Frame finish: Powder-coated
• Intended use: Handling curb stones, concrete and granite kerbs
• Warranty: 12 months
